ESD224DQAR - Texas Instruments

Description: 4-Channel Low Clamping ESD Protection Device for HDMI Interface

Download ESD224DQAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

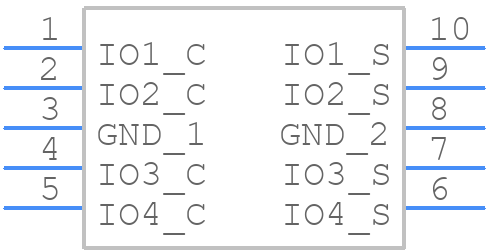

ESD224DQAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ESD224DQAR - Texas Instruments PCB footprint - Other - Other - ESD224DQAR-1
click to zoom
3D Models
ESD224DQAR - Texas Instruments - 3D model - Other - ESD224DQAR-1
click to zoom

ESD224DQAR Details

  • Manufacturer Part Number:

    ESD224DQAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    2018-03-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Max:

    7.9 V

  • Breakdown Voltage-Min:

    5 V

  • Breakdown Voltage-Nom:

    6.45 V

  • Clamping Voltage-Max:

    14 V

  • Configuration:

    SEPARATE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PSSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    17 W

  • Number of Elements:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.6 V

  • Reverse Current-Max:

    0.01 µA

  • Reverse Test Voltage:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

ESD224DQAR Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD224DQAR involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the protected IC. Additionally, the input and output pins should be routed separately to minimize crosstalk.
  • ESD224DQAR is designed to handle surge pulses up to 25 kV according to IEC 61000-4-5. It can tolerate multiple surges without degradation, ensuring reliable protection for the downstream circuitry.
  • The maximum operating temperature range for ESD224DQAR is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, ESD224DQAR can be used in high-speed data lines. It can support data rates up to 10 Gbps, making it suitable for high-speed interfaces like USB, HDMI, and Ethernet.
  • ESD224DQAR is designed to minimize signal distortion and attenuation. It has a low capacitance of 0.5 pF, which ensures minimal signal degradation and preserves the signal integrity of the protected circuitry.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESD224DQAR Overview

Use the download button to access the ESD224DQAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD22, or try a keyword search, such as Transient Suppressors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
