ESD7504MUTAG - onsemi

Description: Low Capacitance (0.55 pF Max, I/O to GND); Protection for the Following IEC Standards: IEC 6100042 (Level 4); Low ESD Clamping Voltage; These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

Download ESD7504MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

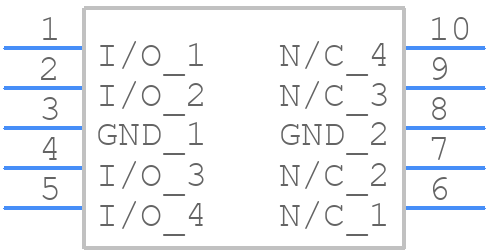

Symbol
ESD7504MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
ESD7504MUTAG - onsemi PCB footprint - Other - Other - ESD7504MUTAG-1
click to zoom
3D Models
ESD7504MUTAG - onsemi - 3D model - Other - ESD7504MUTAG-1
click to zoom

ESD7504MUTAG Details

  • Manufacturer Part Number:

    ESD7504MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-10

  • Manufacturer Package Code:

    517BB

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Breakdown Voltage-Min:

    4 V

  • Breakdown Voltage-Nom:

    5 V

  • Case Connection:

    ANODE

  • Configuration:

    COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ESD7504MUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD7504MUTAG involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane under the device is also recommended to reduce noise and improve performance.
  • The recommended capacitor value for ESD7504MUTAG is 1nF to 10nF. The capacitor value should be chosen based on the specific application requirements, such as the frequency of operation and the level of noise filtering required.
  • The maximum operating temperature for ESD7504MUTAG is 125°C. However, it's recommended to operate the device within a temperature range of -40°C to 85°C for optimal performance and reliability.
  • Yes, ESD7504MUTAG is suitable for high-speed data lines, including USB, HDMI, and Ethernet. The device is designed to protect against electrostatic discharge (ESD) and other transient voltage events, making it suitable for high-speed applications.
  • To ensure proper soldering of ESD7504MUTAG, follow the recommended soldering profile and use a soldering iron with a temperature of 260°C to 280°C. Apply a small amount of solder paste to the PCB pads and place the device carefully to avoid bridging or shorting.
