ESP32-D0WD-V3 - Espressif Systems

Description: WiFi Development Tools (802.11) SMD IC WiFi Dual Core BT Combo

Download ESP32-D0WD-V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

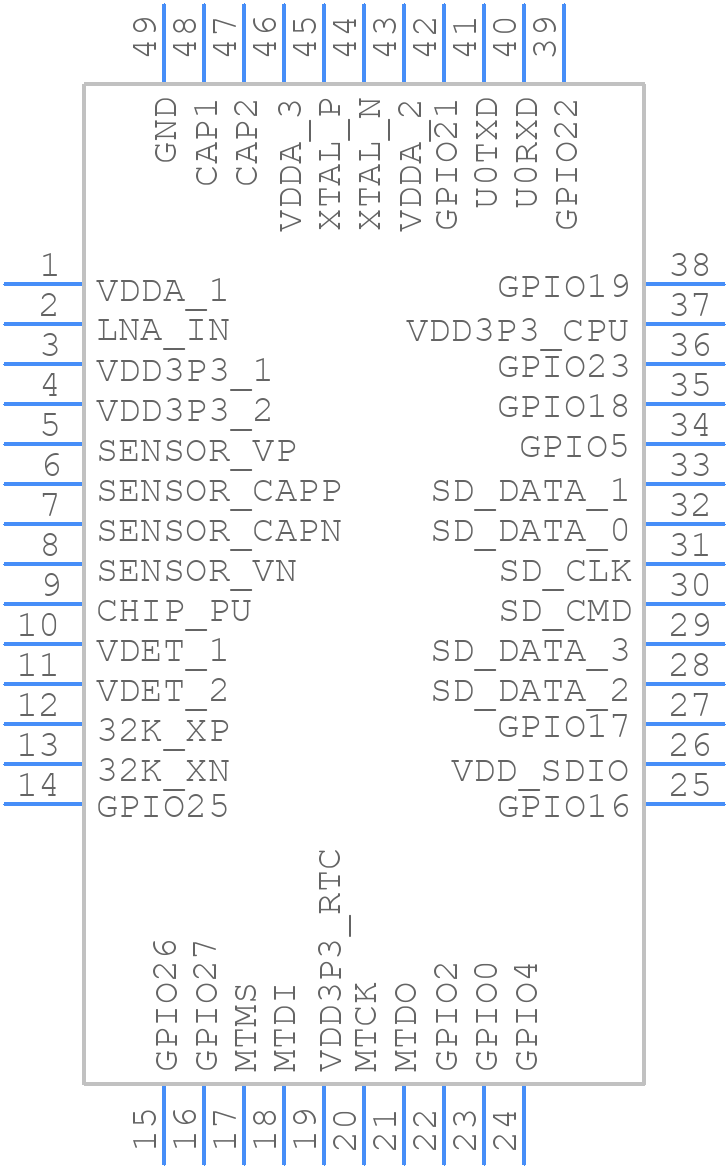

ESP32-D0WD-V3 - Espressif Systems - PCB symbol
click to zoom
PCB Footprints
ESP32-D0WD-V3 - Espressif Systems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (5x5 mm) height 0.9
click to zoom
3D Models
ESP32-D0WD-V3 - Espressif Systems - 3D model - Quad Flat No-Lead - QFN48 (5x5 mm) height 0.9
click to zoom

ESP32-D0WD-V3 Details

  • Manufacturer Part Number:

    ESP32-D0WD-V3

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    5 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.2SQ,14

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    TSMC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

ESP32-D0WD-V3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ESP32-D0WD-V3 is -40°C to 85°C.
  • To configure the ESP32-D0WD-V3 for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the clock frequency and voltage to minimize power consumption.
  • Yes, the ESP32-D0WD-V3 has a built-in antenna switch that allows you to use an external antenna. You can connect the external antenna to the RF_PIN (GPIO 25) and configure the antenna switch using the esp_wifi API.
  • To implement secure boot on the ESP32-D0WD-V3, use the esp_secure_boot API to generate a secure boot key and sign your firmware image. Then, configure the ESP32-D0WD-V3 to use secure boot by setting the BOOT_MODE to SECURE_BOOT.
  • The maximum data transfer rate for the ESP32-D0WD-V3's SPI interface is 80 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESP32-D0WD-V3 Overview

Use the download button to access the ESP32-D0WD-V3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
