- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ESP32-S0WD
- Part Number ESP32-S0WD
- Manufacturer Espressif Systems
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN48 (5x5 mm)
- Released Date Apr 10, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ESP32-S0WD Details
-
Manufacturer Part Number:
ESP32-S0WD
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-48
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Espressif Inc
-
JESD-30 Code:
S-PQCC-N48
-
Length:
5 mm
-
Number of Terminals:
48
-
Operating Temperature-Max:
125 °C
-
Operating Temperature-Min:
-40 °C
-
Package Body Material:
PLASTIC/EPOXY
ESP32-S0WD Frequently Asked Questions (FAQs)
-
The ESP32-S0WD can operate in a temperature range of -40°C to 85°C.
-
To configure the ESP32-S0WD for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the clock frequency and voltage to minimize power consumption.
-
Yes, the ESP32-S0WD has a built-in antenna, but you can also use an external antenna by connecting it to the RF pin and configuring the Wi-Fi mode to use the external antenna.
-
To implement secure boot on the ESP32-S0WD, use the esp_secure_boot API to generate a secure boot key, and then configure the boot mode to use the secure boot key.
-
The ESP32-S0WD's Wi-Fi interface supports a maximum data transfer rate of 150 Mbps.
Trust Checks
Expert Contribution
System Verified
Community Approved
ESP32-S0WD Overview

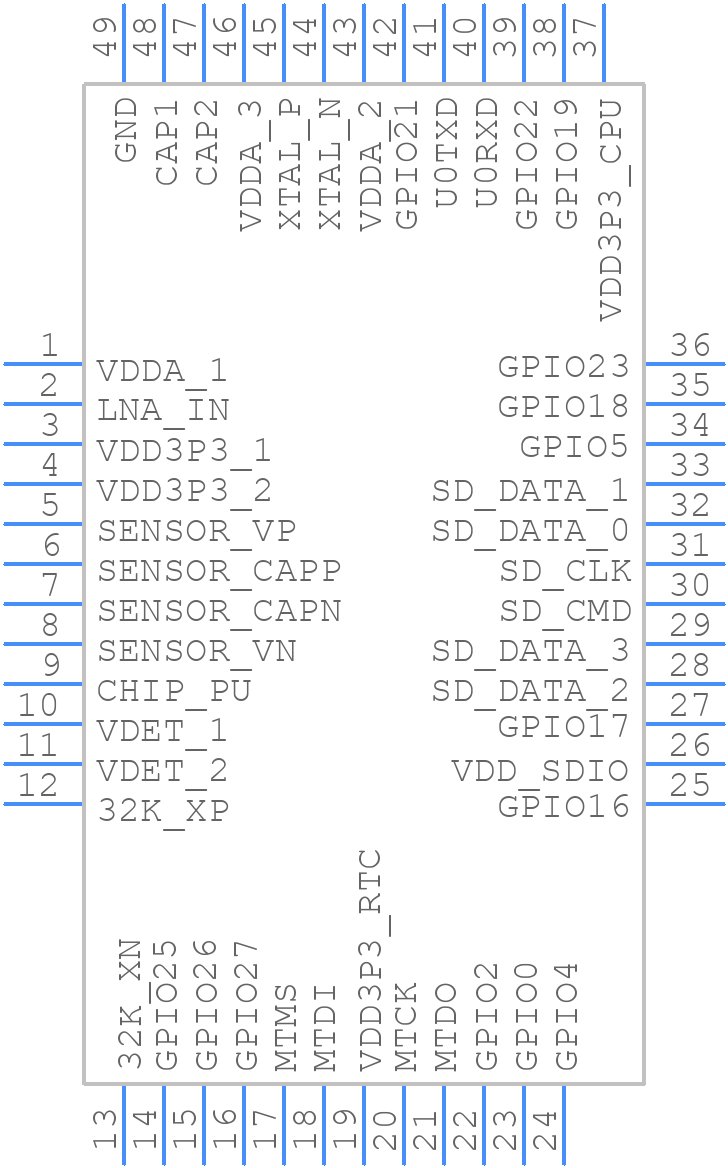

Use the download button to access the ESP32-S0WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
