ESP32-WROOM-32E-N8R2 - Espressif Systems

Description: Multiprotocol Modules ESP32-WROOM-32E integrates ESP32-D0WD-V3, with higher stability and safety performance.

Download ESP32-WROOM-32E-N8R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

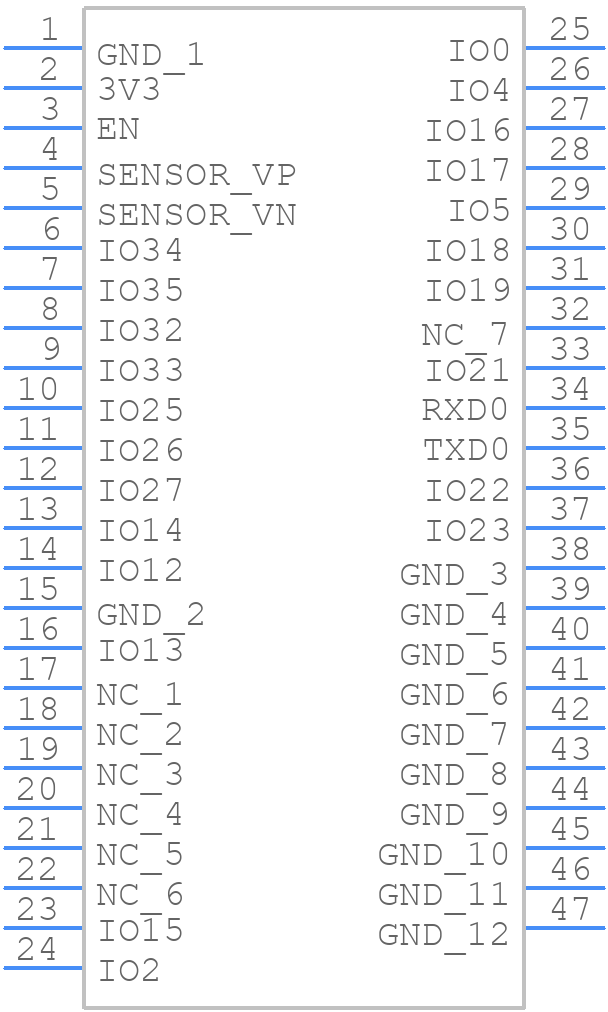

Symbol
ESP32-WROOM-32E-N8R2 - Espressif Systems - PCB symbol
click to zoom

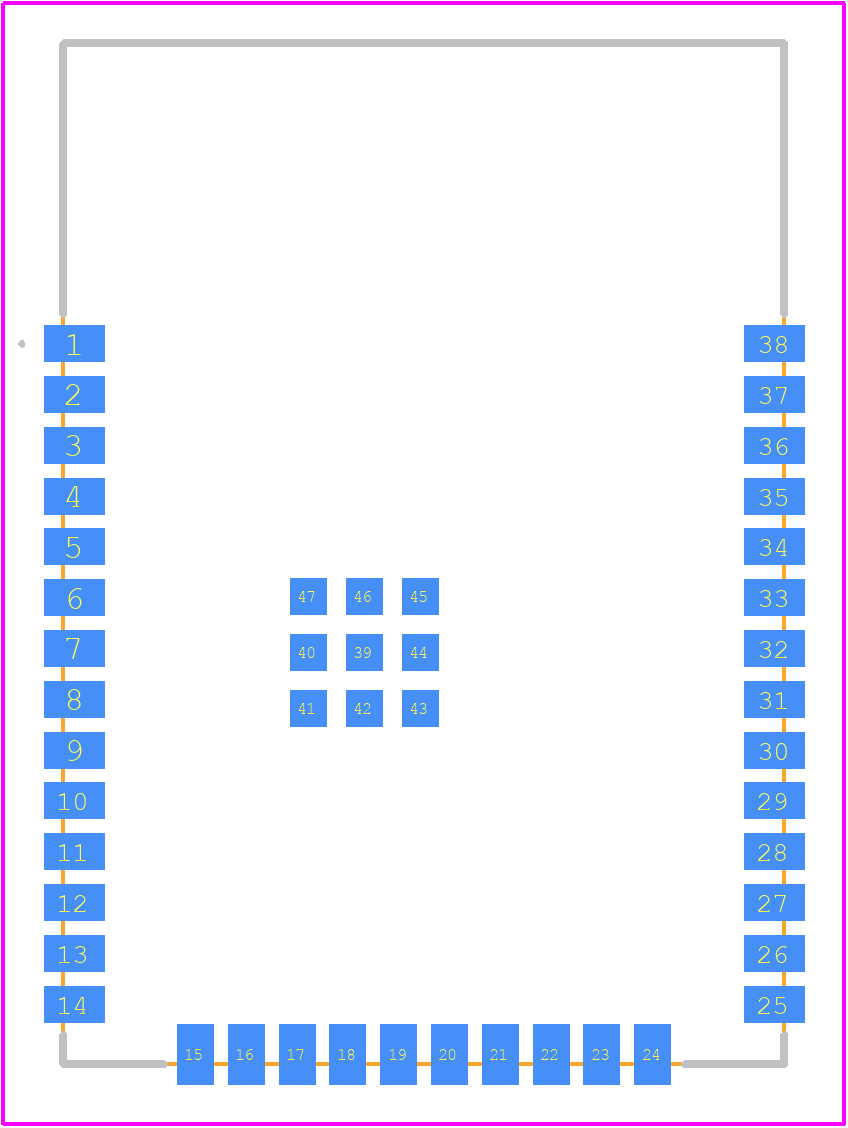

PCB Footprints
ESP32-WROOM-32E-N8R2 - Espressif Systems PCB footprint - Other - Other - ESP32-WROOM-32E-N8R2-2
click to zoom
3D Models
ESP32-WROOM-32E-N8R2 - Espressif Systems - 3D model - Other - ESP32-WROOM-32E-N8R2-2
click to zoom

ESP32-WROOM-32E-N8R2 Details

  • Manufacturer Part Number:

    ESP32-WROOM-32E-N8R2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    MODULE-38

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • JESD-30 Code:

    R-XXMA-N38

  • Length:

    25.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.25 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ESP32-WROOM-32E-N8R2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ESP32-WROOM-32E-N8R2 is -40°C to 85°C.
  • To configure the ESP32-WROOM-32E-N8R2 for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the clock frequency and voltage to minimize power consumption.
  • Yes, the ESP32-WROOM-32E-N8R2 has a built-in antenna, but you can also use an external antenna by connecting it to the RF pin and configuring the Wi-Fi mode to use the external antenna.
  • You can update the firmware on the ESP32-WROOM-32E-N8R2 using the esptool.py command-line tool or the ESP-IDF SDK's OTA (Over-The-Air) update feature.
  • The maximum current consumption of the ESP32-WROOM-32E-N8R2 is approximately 500mA during Wi-Fi transmission and 10mA during deep sleep mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESP32-WROOM-32E-N8R2 Overview

Use the download button to access the ESP32-WROOM-32E-N8R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
