ESP32-WROOM-32UE-N8 - Espressif Systems

Description: Multiprotocol Modules SMD module ESP32-WROOM-32UE, ESP32-D0WD-V3, ESP32 ECO V3, 8 MB SPI flash, IPEX antenna connector

Download ESP32-WROOM-32UE-N8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESP32-WROOM-32UE-N8 - Espressif Systems - PCB symbol
click to zoom
PCB Footprints

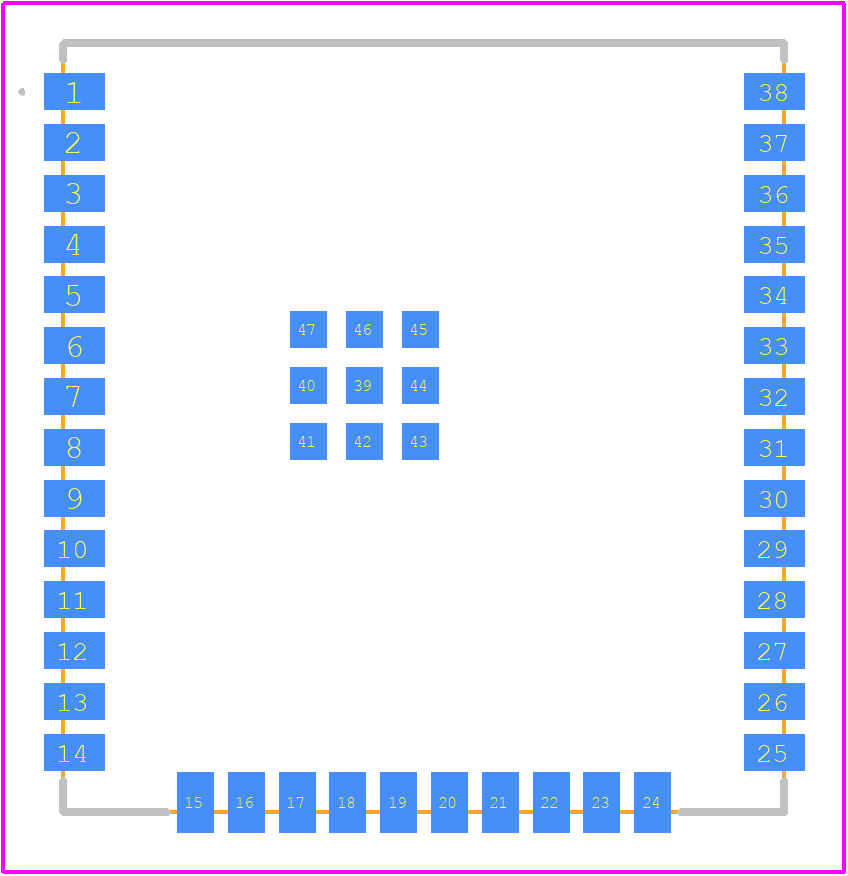

ESP32-WROOM-32UE-N8 - Espressif Systems PCB footprint - Other - Other - ESP32-WROOM-32UE-N8-1
click to zoom
3D Models
ESP32-WROOM-32UE-N8 - Espressif Systems - 3D model - Other - ESP32-WROOM-32UE-N8-1
click to zoom

ESP32-WROOM-32UE-N8 Details

  • Manufacturer Part Number:

    ESP32-WROOM-32UE-N8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    XMA,

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • JESD-30 Code:

    R-XXMA-N38

  • Length:

    19.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.35 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ESP32-WROOM-32UE-N8 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ESP32-WROOM-32UE-N8 is -40°C to 85°C.
  • Yes, the ESP32-WROOM-32UE-N8 is designed to operate in humid environments, but it's recommended to follow proper humidity and moisture protection guidelines to ensure reliability.
  • The ESP32-WROOM-32UE-N8 meets various regulatory requirements, including FCC, CE, and TELEC. Ensure you follow the guidelines and certifications for your region, and consult with Espressif's documentation and support for specific requirements.
  • The recommended power supply voltage for the ESP32-WROOM-32UE-N8 is 3.0V to 3.6V, with a typical voltage of 3.3V.
  • Yes, the ESP32-WROOM-32UE-N8 is suitable for battery-powered devices due to its low power consumption. However, ensure you follow proper power management and battery life optimization techniques to maximize battery life.
