F0502NLGI - Renesas Electronics

Description: The F0502 provides 28.2dB gain and offers 47dB gain adjustment in 1dB steps and is designed to operate with a single 5V supply. Nominally, the device offers +44dBm Output IP3 using 480mA of ICC. Alternately, the device can be configured in low current (LC) mode to reduce power consumption to less than 1.95 watts.This device is packaged in a 10 × 10 mm 68-VFQFPN with 50Ω single-ended RF input and 200Ω differential IF output impedances for ease of integration.

Download F0502NLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F0502NLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

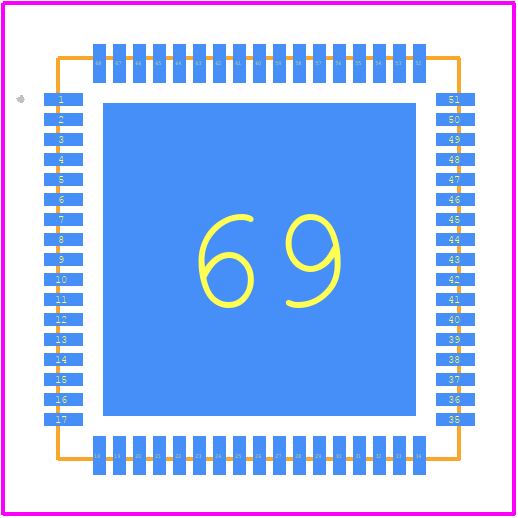

F0502NLGI - Renesas Electronics PCB footprint - Other - Other - 68-VFQFPN, 10 × 10 mm
click to zoom
3D Models
F0502NLGI - Renesas Electronics - 3D model - Other - 68-VFQFPN, 10 × 10 mm
click to zoom

F0502NLGI Details

  • Manufacturer Part Number:

    F0502NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    68

  • Manufacturer Package Code:

    NLG68P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • RF/Microwave Device Type:

    RF RECEIVER
