F1451NKGK - Renesas Electronics

Description: The F1451 is a High-Gain/High-Linearity 450MHz to 1100MHz TX Variable Gain Amplifier used in transmitter applications. The F1451 TX VGA provides 32dB maximum gain with +41dBm OIP3 and 3.6dB noise figure. Up to 29.5dB gain control is achieved using the combination of a digital step attenuator (DSA) plus KLIN™ RF variable gain amplifier gain adjustment. This device uses a single 5V supply and 185mA of ICC. This device is packaged in a 6 × 6 mm, 28-QFN with 50Ω single-ended RF input and RF output impedances fo

Download F1451NKGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

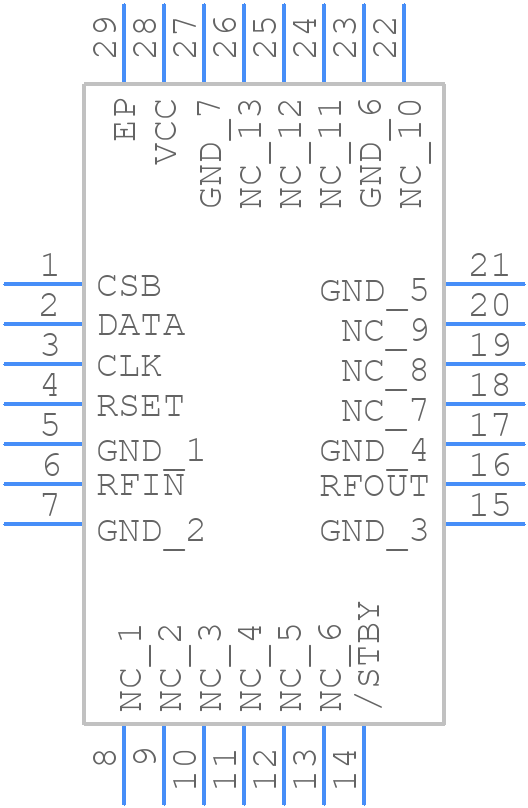

F1451NKGK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1451NKGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NKG28
click to zoom
3D Models
F1451NKGK - Renesas Electronics - 3D model - Quad Flat No-Lead - NKG28
click to zoom

F1451NKGK Details

  • Manufacturer Part Number:

    F1451NKGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NKG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Terminal Finish:

    Tin (Sn)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1451NKGK Overview

Use the download button to access the F1451NKGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F1451, or try a keyword search, such as RF/Microwave Amplifiers
