F1958NBGK - Renesas Electronics

Description: The F1958 is part of IDT’s Glitch-Free™ family of DSAs optimized for the demanding requirements of Base Station (BTS) radio cards and numerous other applications. This device is offered in a compact 4 × 4 mm 24-VFQFPN package with 50Ω input and output impedance for ease of integration into the radio or RF system.  The F1958 offers very high reliability due to its construction from a monolithic silicon die and has very low  insertion loss with minimal distortion. Additionally, the device is designed to have

Download F1958NBGK Model

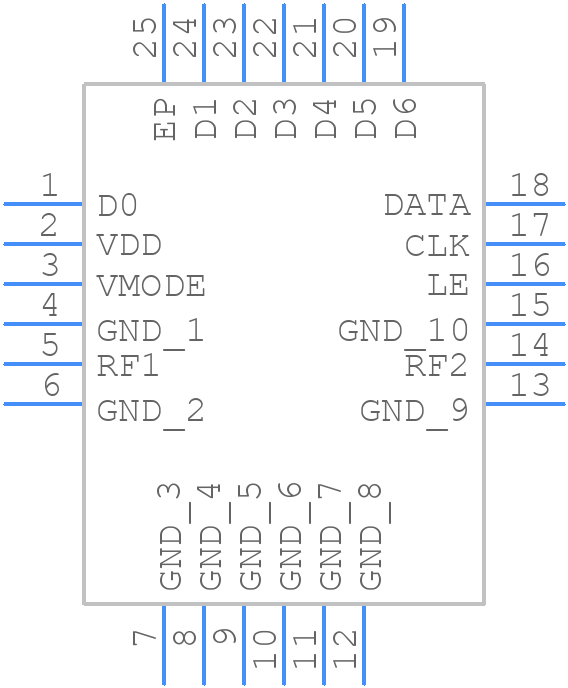

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F1958NBGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - F1958NBGK
click to zoom
3D Models
F1958NBGK - Renesas Electronics  - 3D model - Quad Flat No-Lead - F1958NBGK
click to zoom

F1958NBGK Details

  • Manufacturer Part Number:

    F1958NBGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NBG24P3

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Tin (Sn)

F1958NBGK Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure that the device is operated within the recommended temperature range and consider using thermal monitoring and shutdown mechanisms.
  • Use a multi-layer PCB with a solid ground plane, and ensure that high-frequency signals are routed away from sensitive analog circuits. Implement proper decoupling, filtering, and shielding to minimize EMI and ensure EMC compliance.
  • Use the device's power-saving modes, such as the low-power mode or shutdown mode, to minimize power consumption. Optimize the system's power management by using power gating, dynamic voltage and frequency scaling, and adaptive voltage scaling.
  • Use differential signaling, implement proper signal termination, and ensure that signal traces are routed away from noise sources. Use shielding, filtering, and decoupling to minimize noise and ensure signal integrity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1958NBGK Overview

Use the download button to access the F1958NBGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F1958, or try a keyword search, such as Other Telecom ICs
