F1958NBGK8 - Renesas Electronics

Description: The F1958 is part of IDT’s Glitch-Free™ family of DSAs optimized for the demanding requirements of Base Station (BTS) radio cards and numerous other applications. This device is offered in a compact 4 × 4 mm 24-VFQFPN package with 50Ω input and output impedance for ease of integration into the radio or RF system.  The F1958 offers very high reliability due to its construction from a monolithic silicon die and has very low  insertion loss with minimal distortion. Additionally, the device is designed to have

Download F1958NBGK8 Model

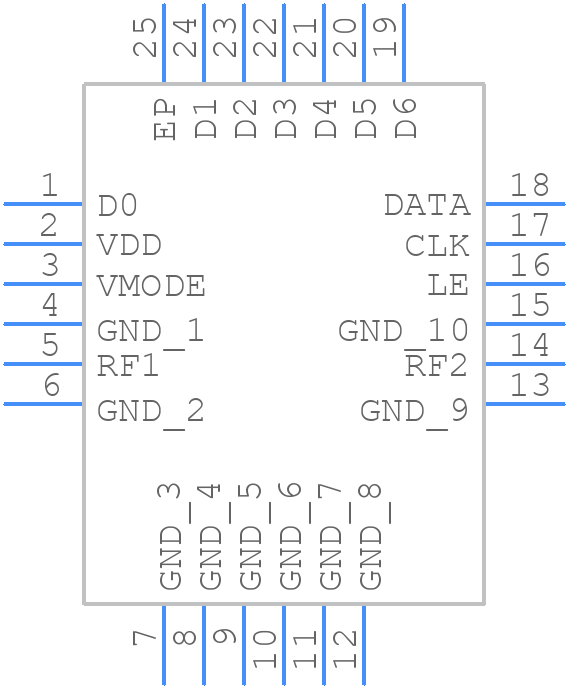

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F1958NBGK8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG24P3
click to zoom
3D Models
F1958NBGK8 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG24P3
click to zoom

F1958NBGK8 Details

  • Manufacturer Part Number:

    F1958NBGK8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NBG24P3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Tin (Sn)

F1958NBGK8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid hot spots on the PCB.
  • The critical timing parameters include the input rise and fall times, output delay, and clock frequency. Refer to the datasheet for specific values and ensure your design meets these requirements.
  • Implement ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Ensure proper PCB layout and routing to minimize ESD susceptibility.
  • Follow the recommended power-up and power-down sequences outlined in the datasheet. Ensure a slow and controlled voltage ramp-up to prevent damage or latch-up.
