Texas Instruments provides a recommended PCB layout in the F28P650DK9NMRR datasheet, but it's essential to follow additional guidelines for optimal thermal performance. Ensure a solid ground plane, use thermal vias, and keep the device away from heat sources. A 4-layer PCB with a dedicated power plane and a thermal relief pattern can help reduce thermal resistance.
The F28P650DK9NMRR requires a high current supply, especially during startup. Ensure your power supply can provide the necessary current, and consider using a bulk capacitor (e.g., 10uF to 22uF) close to the device to filter out voltage droops. You may also need to add a current limiting resistor or a current sense resistor to prevent overcurrent conditions.
The F28P650DK9NMRR's high switching frequency (up to 650 kHz) can generate electromagnetic interference (EMI) and noise. To mitigate this, use a shielded enclosure, add EMI filters, and ensure proper PCB layout and grounding. You may also need to add noise reduction components, such as ferrite beads or common-mode chokes, to your design.
The F28P650DK9NMRR does not have built-in OVP and UVP. You can implement these features using external components, such as voltage supervisors (e.g., TLV7031) or voltage detectors (e.g., TLV7035). These components can detect overvoltage or undervoltage conditions and trigger a reset or shutdown signal to protect the device.
The F28P650DK9NMRR has a maximum junction temperature (TJ) of 150°C. In high-temperature environments, ensure good airflow, use a heat sink or thermal interface material, and consider derating the device's power dissipation. You may also need to add thermal monitoring and shutdown features to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F28P650DK9NMRR Overview

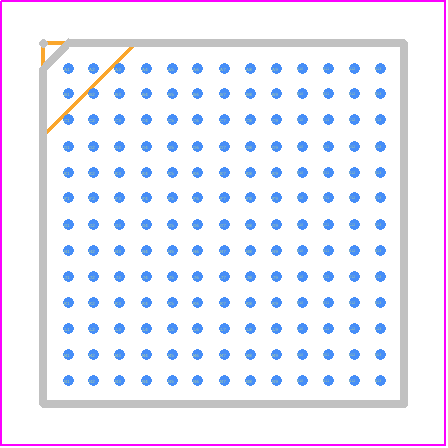

Use the download button to access the F28P650DK9NMRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F28P6,
or try a keyword search, such as Microcontrollers
