Texas Instruments provides a recommended PCB layout in the F28P650DK9PTP datasheet, but it's essential to follow additional guidelines for optimal thermal performance. Ensure a solid ground plane, use thermal vias, and keep the device away from heat sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The F28P650DK9PTP requires a high current supply, especially during startup. Ensure your power supply can provide the necessary current, and consider using a bulk capacitor (e.g., 10uF to 22uF) close to the device to filter out noise and reduce voltage droop. You may also need to add additional decoupling capacitors.
The F28P650DK9PTP's high switching frequency (up to 650 kHz) can generate significant EMI and noise. To mitigate this, use a shielded enclosure, add EMI filters, and ensure proper PCB layout and grounding. You may also need to add snubbers or ferrite beads to reduce noise and ringing.
The F28P650DK9PTP has a built-in overcurrent protection feature, but it's essential to implement additional protection mechanisms. Use an external current sense resistor and a comparator to monitor the current, and add a shutdown circuit to disconnect the power supply in case of an overcurrent event.
The F28P650DK9PTP has a maximum junction temperature of 150°C. In high-temperature applications, ensure proper heat sinking, use a thermal interface material, and consider using a heat sink with a high thermal conductivity. You may also need to derate the device's power handling capabilities.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F28P650DK9PTP Overview

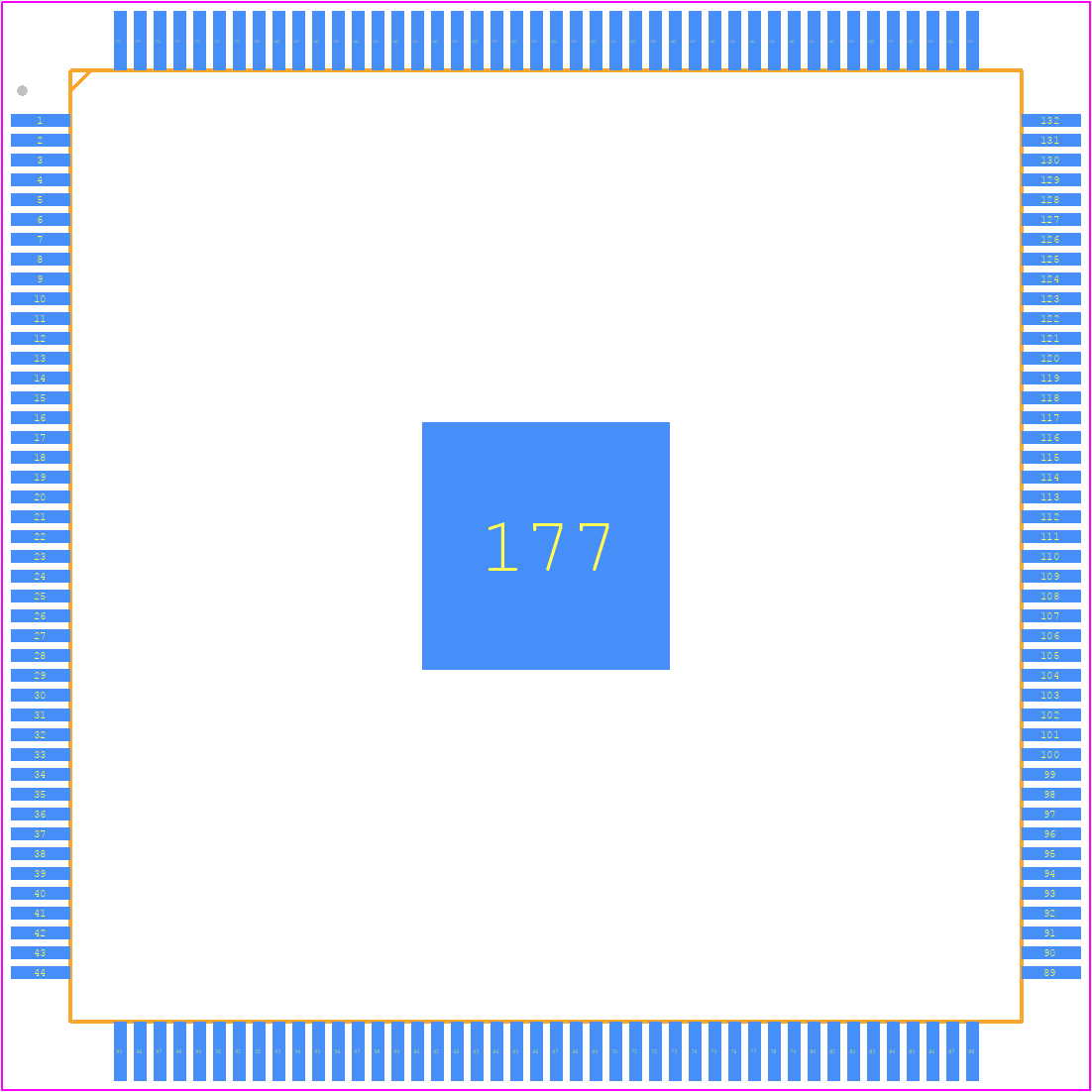

Use the download button to access the F28P650DK9PTP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F28P6,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
