F3L150R07W2E3_B11 - Infineon

Description: IGBT Modules IGBT MODULES 650V 150A

Download F3L150R07W2E3_B11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

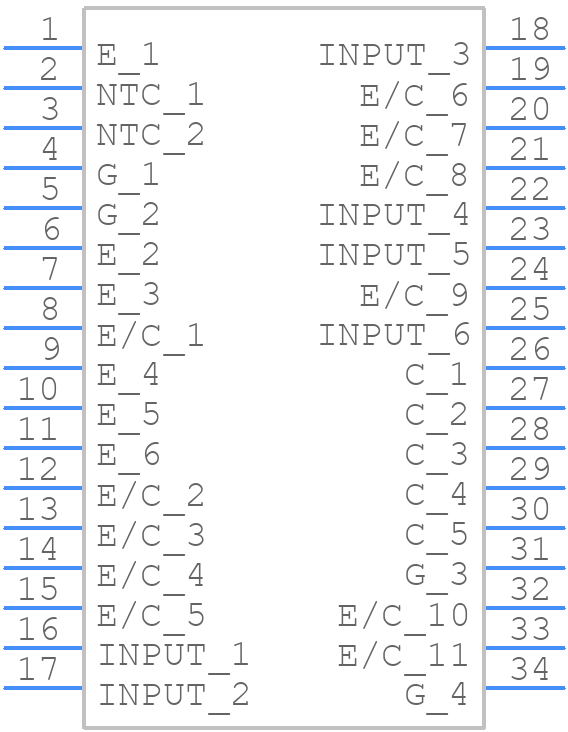

Symbol
F3L150R07W2E3_B11 - Infineon - PCB symbol
click to zoom

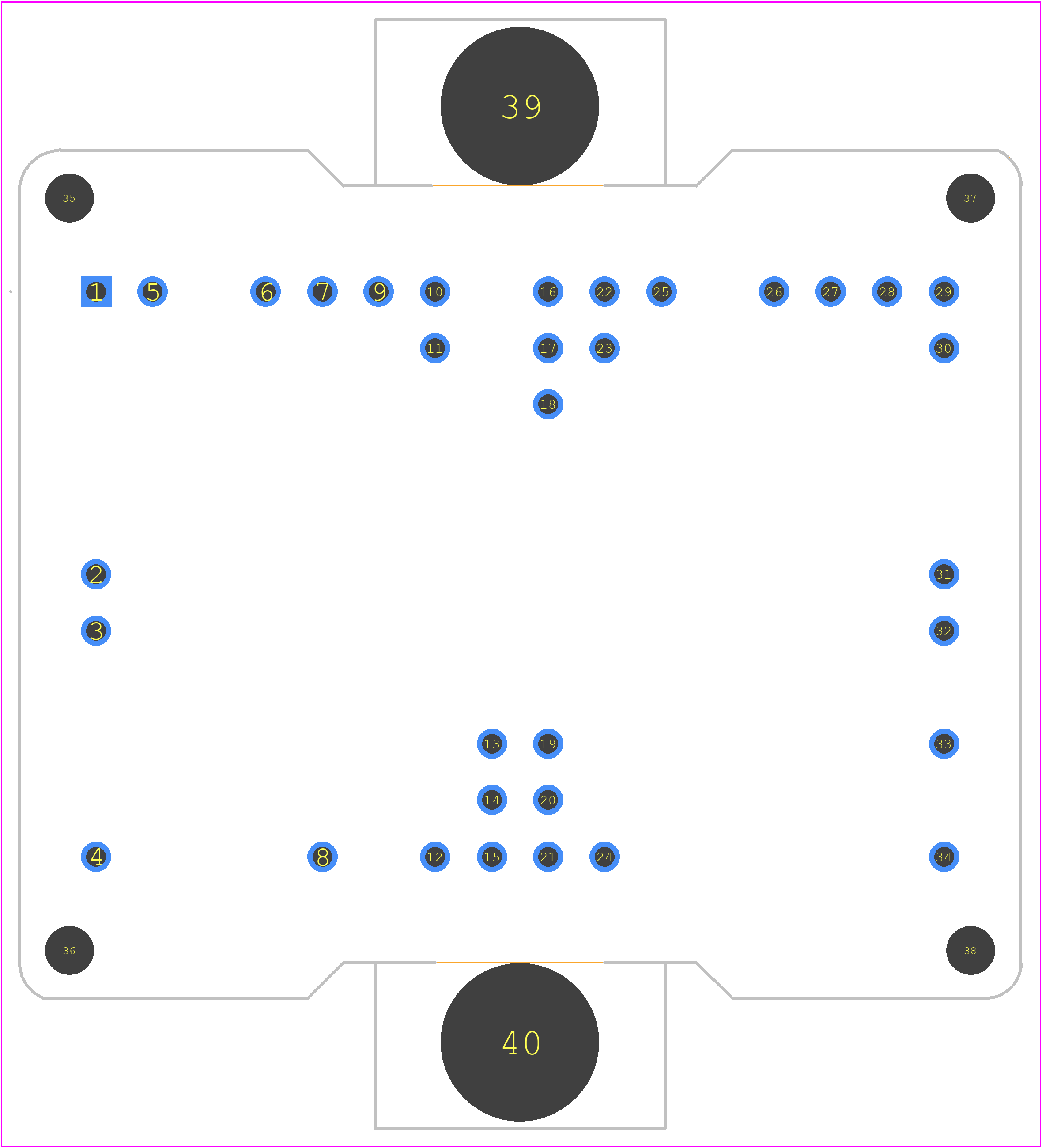

PCB Footprints
F3L150R07W2E3_B11 - Infineon PCB footprint - Other - Other - F3L150R07W2E3_B11-3
click to zoom
3D Models
F3L150R07W2E3_B11 - Infineon - 3D model - Other - F3L150R07W2E3_B11-3
click to zoom

F3L150R07W2E3_B11 Details

  • Manufacturer Part Number:

    F3L150R07W2E3_B11

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Hungary, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    150 A

  • Collector-Emitter Voltage-Max:

    650 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    6.5 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X34

  • Number of Elements:

    4

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    335 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    480 ns

  • Turn-on Time-Nom (ton):

    155 ns

  • VCEsat-Max:

    1.9 V

F3L150R07W2E3_B11 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the F3L150R07W2E3_B11 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the F3L150R07W2E3_B11 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the F3L150R07W2E3_B11 can be used in a parallel configuration, but it's essential to ensure that the modules are properly matched and synchronized to avoid uneven current sharing and thermal issues.
  • The maximum allowable voltage transient for the F3L150R07W2E3_B11 is typically 1.5 times the maximum rated voltage, but it's recommended to consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F3L150R07W2E3_B11 Overview

Use the download button to access the F3L150R07W2E3_B11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F3L15, or try a keyword search, such as IGBTs
