F3L15R12W2H3_B27 - Infineon

Description: IGBT Modules 3-Phase Inverter VCES = 1200V,15A / ICRM = 30A,145 W ,+/-20 V 0,875 nF -40 150 °C

Download F3L15R12W2H3_B27 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

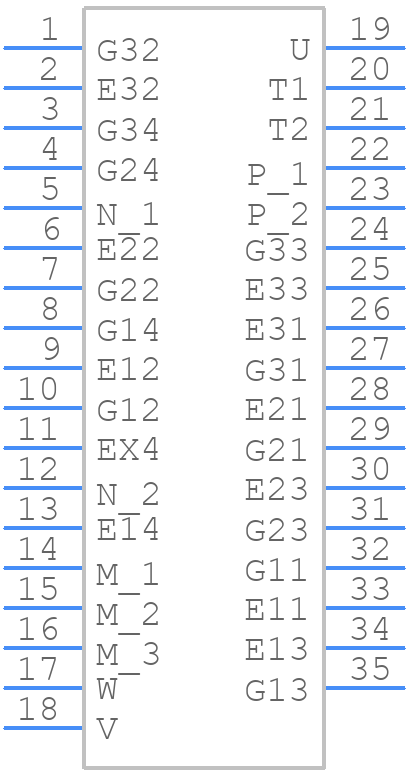

F3L15R12W2H3_B27 - Infineon - PCB symbol
click to zoom
PCB Footprints

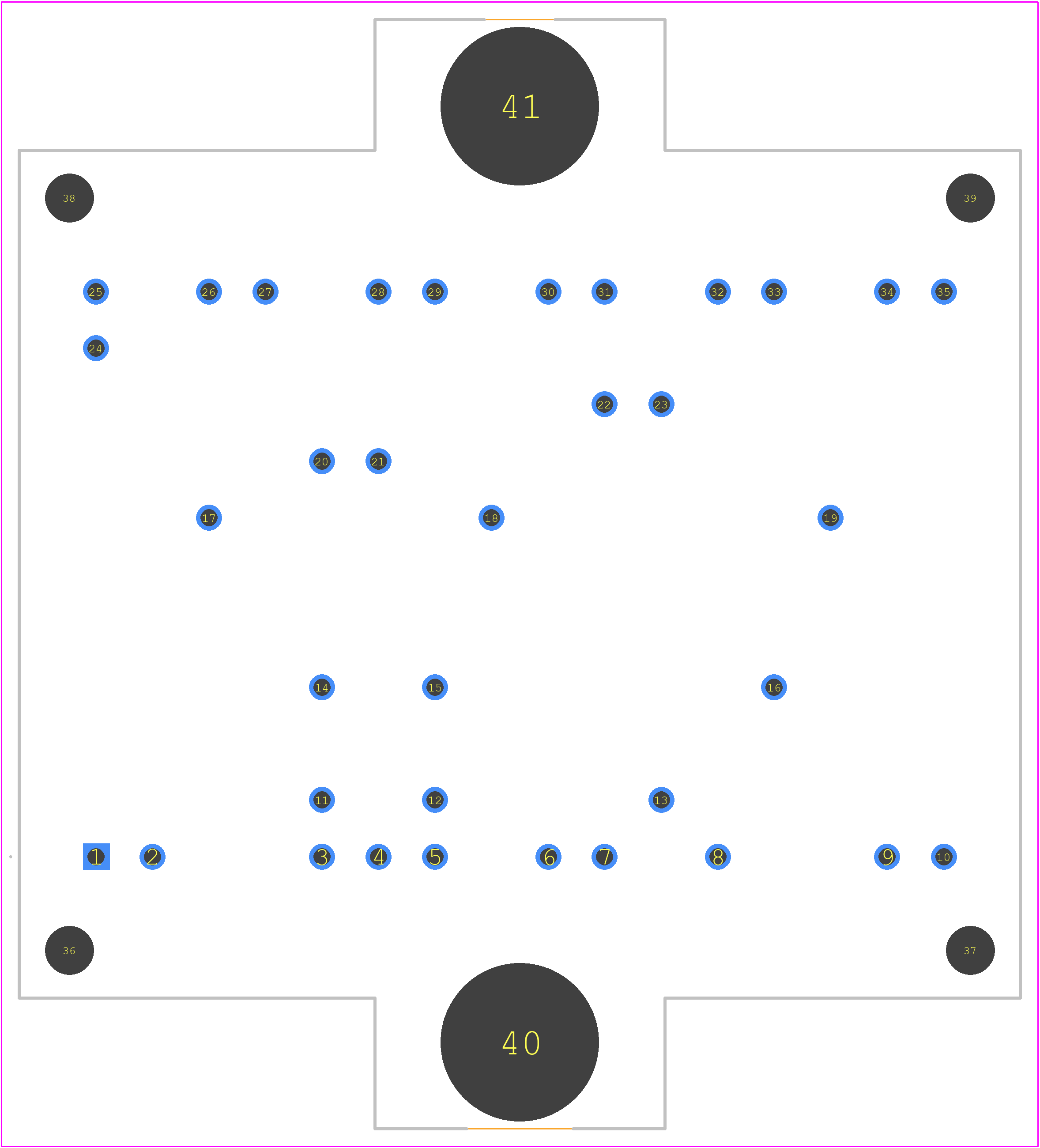

F3L15R12W2H3_B27 - Infineon PCB footprint - Other - Other - F3L15R12W2H3_B27-3
click to zoom
3D Models
F3L15R12W2H3_B27 - Infineon - 3D model - Other - F3L15R12W2H3_B27-3
click to zoom

F3L15R12W2H3_B27 Details

  • Manufacturer Part Number:

    F3L15R12W2H3_B27

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    20 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    6.5 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X34

  • Number of Elements:

    12

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    145 W

  • Reference Standard:

    UL APPROVED

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    355 ns

  • Turn-on Time-Nom (ton):

    67 ns

  • VCEsat-Max:

    2.4 V
