F4-75R06W1E3 - Infineon

Description: Trans IGBT Module N-CH 600V 100A 275000mW 18-Pin EASY1B-1 Tray

Download F4-75R06W1E3 Model

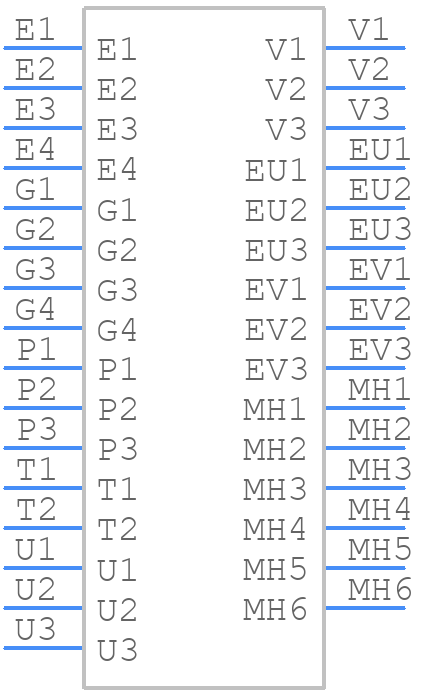

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

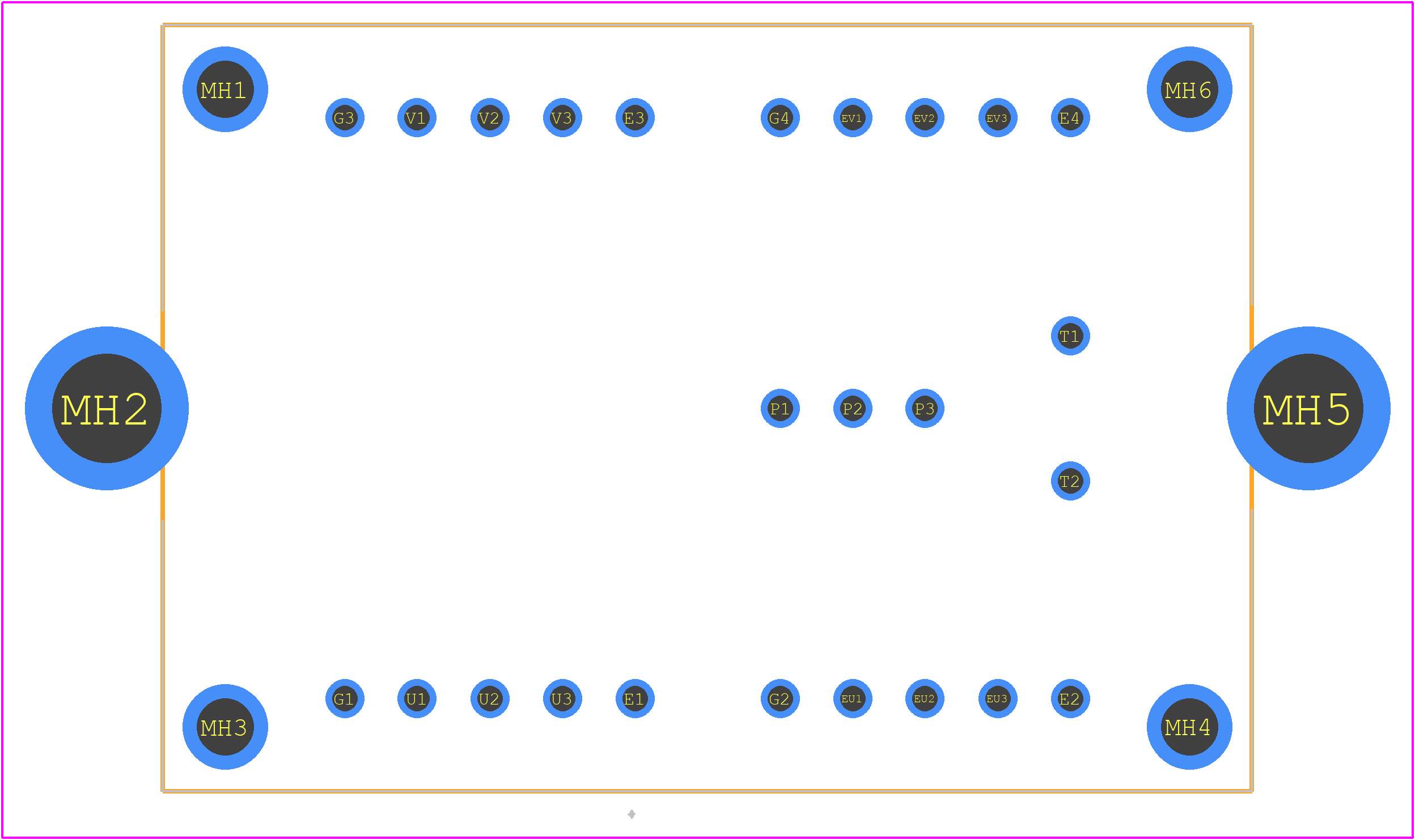

PCB Footprints
F4-75R06W1E3 - Infineon PCB footprint - Other - Other - F4-75R06W1E3-1
click to zoom
3D Models
F4-75R06W1E3 - Infineon  - 3D model - Other - F4-75R06W1E3-1
click to zoom

F4-75R06W1E3 Details

  • Manufacturer Part Number:

    F4-75R06W1E3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    MODULE

  • Pin Count:

    25

  • Country Of Origin:

    Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    100 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X11

  • Number of Elements:

    4

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    275 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    330 ns

  • Turn-on Time-Nom (ton):

    45 ns

  • VCEsat-Max:

    1.9 V

F4-75R06W1E3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the F4-75R06W1E3 is -40°C to 150°C.
  • The recommended PCB footprint for the F4-75R06W1E3 is a 5x6mm pad with a 0.5mm thermal via.
  • Yes, the F4-75R06W1E3 is suitable for high-reliability applications, such as automotive and industrial systems, due to its robust design and high-quality manufacturing process.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK should be used.
  • The maximum allowed voltage for the F4-75R06W1E3 is 75V.
