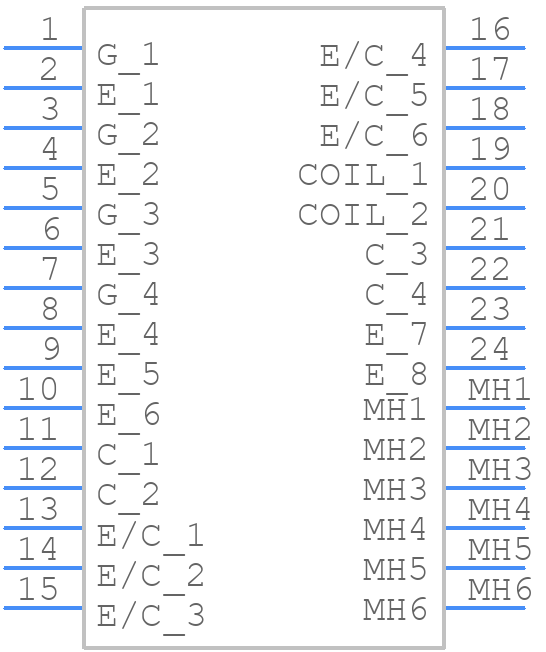

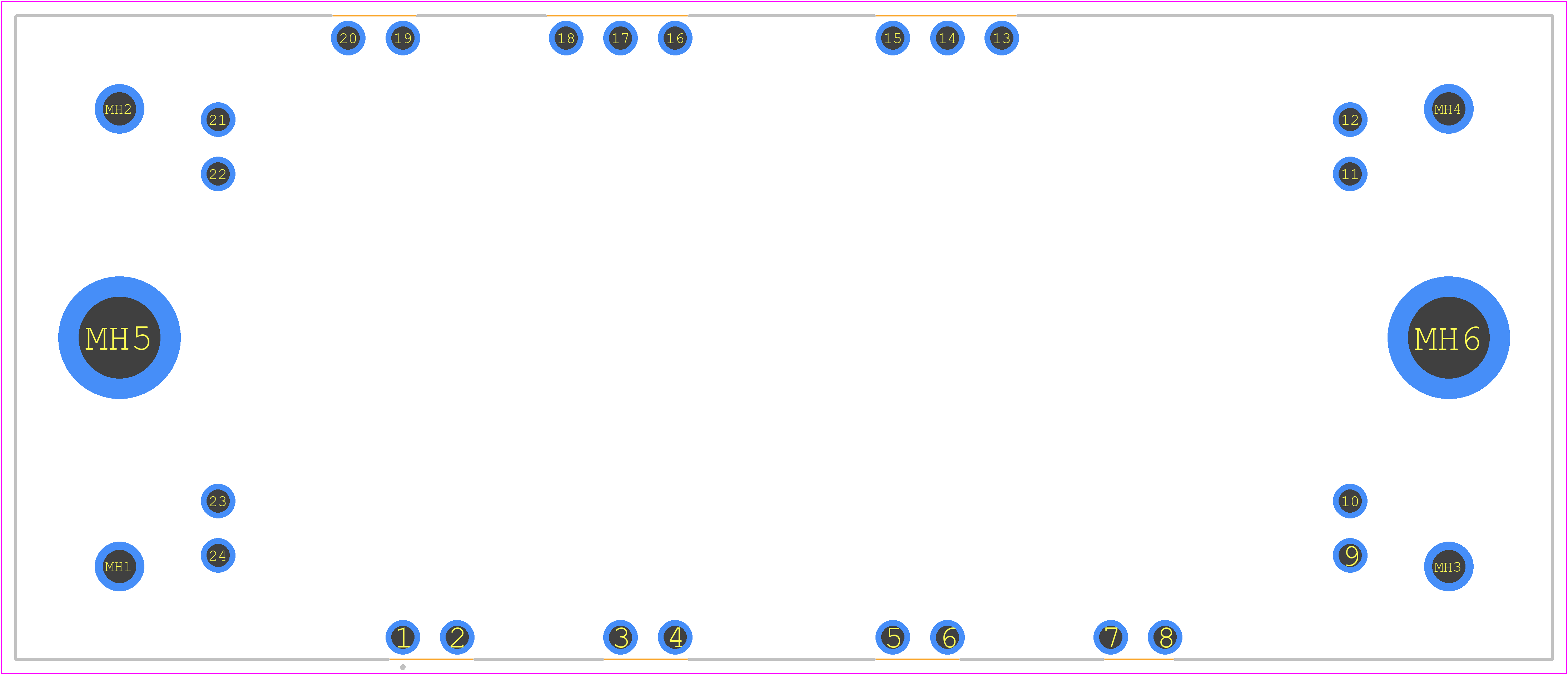

F475R12KS4B11BOSA1 - Infineon

F475R12KS4B11BOSA1 Frequently Asked Questions (FAQs)

• What is the thermal resistance of the F475R12KS4B11BOSA1?
  The thermal resistance (Rth) of the F475R12KS4B11BOSA1 is typically around 0.5 K/W (junction to case) and 1.5 K/W (junction to ambient) at a maximum junction temperature of 150°C.
• How do I ensure the reliability of the F475R12KS4B11BOSA1 in high-temperature applications?
  To ensure reliability, follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power handling capabilities at high temperatures. Additionally, ensure proper PCB design, layout, and soldering to minimize thermal resistance and prevent hotspots.
• What is the recommended gate drive voltage for the F475R12KS4B11BOSA1?
  The recommended gate drive voltage for the F475R12KS4B11BOSA1 is between 10 V and 15 V, with a maximum gate-source voltage of ±20 V. A higher gate drive voltage can improve switching performance, but may also increase power losses and EMI.
• Can I use the F475R12KS4B11BOSA1 in a parallel configuration to increase power handling?
  Yes, the F475R12KS4B11BOSA1 can be used in a parallel configuration to increase power handling. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing and oscillations.
• What is the maximum allowed dv/dt for the F475R12KS4B11BOSA1?
  The maximum allowed dv/dt for the F475R12KS4B11BOSA1 is 10 kV/μs. Exceeding this limit can cause the device to malfunction or fail. Proper snubber design and layout can help reduce dv/dt stress and ensure reliable operation.
