Description:SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV−PHEV; High Voltage Snubber Capacitor for Low Noise at High Voltage Battery; 5 kV/1 sec Electrically Isolated Substrate for Easy Assembly; Compact Design for Low Total Module Resistance; Module Serialization for Full Traceability; Lead Free, RoHS and UL94V−0 Compliant; Automotive Qualified per AEC Q101 and AQG324 Guidelines
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature rating.
Using a lower-rated inductor for the output filter may lead to increased losses, reduced efficiency, and potential reliability issues. It's recommended to use an inductor with a rating that meets or exceeds the specified requirements to ensure optimal performance and reliability.
While it's possible to use different capacitor types, it's essential to ensure that the selected capacitors meet the specified requirements for voltage rating, capacitance, and ESR. Using capacitors with different characteristics may affect the overall performance and stability of the device.
To troubleshoot issues related to the device's enable pin, check the voltage level on the pin, ensure that it's within the specified range, and verify that the pin is not being driven by multiple sources. Also, check the device's datasheet for specific enable pin requirements and guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAM65HR51DS1 Overview

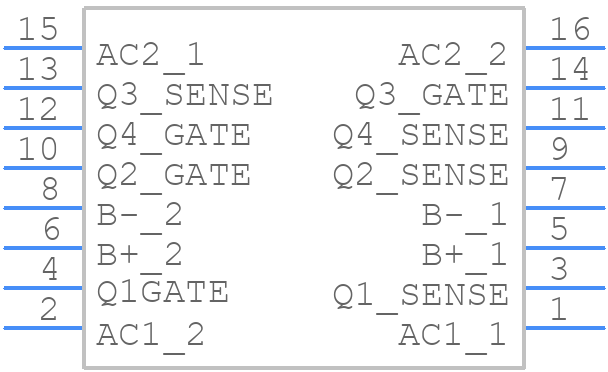

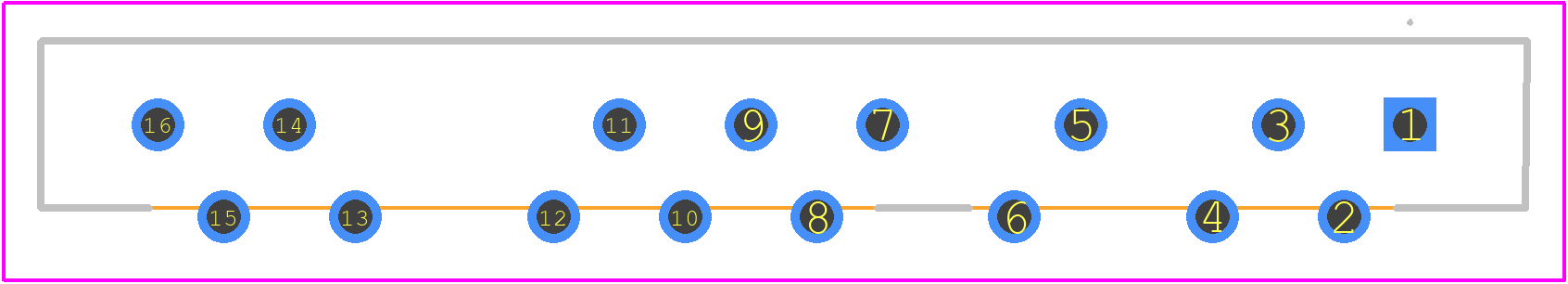

Use the download button to access the FAM65HR51DS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAM65,
or try a keyword search, such as Power Management Circuits
