Description:Lead Free, RoHS and UL94V−0 Compliant; Automotive Qualified per AEC Q101 and AQG324 Guidelines; SIP or DIP H−Bridge Power Module for On−board Charger (OBC) in EV−PHEV; High Voltage Snubber Capacitor for Low Noise at High Voltage Battery; 5 kV/1 sec Electrically Isolated Substrate for Easy Assembly; Compact Design for Low Total Module Resistance; Module Serialization for Full Traceability
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and ensure that the PCB is designed to handle high temperatures.
To mitigate EMI and RFI, use a shielded enclosure, keep the PCB layout compact, and use a common mode choke or ferrite bead on the input lines. Additionally, ensure that the device is properly grounded, and use EMI-absorbing materials if necessary.
To optimize the device for low power consumption, use the lowest possible input voltage, reduce the switching frequency, and use a high-efficiency transformer. Additionally, consider using a power-saving mode or a low-power operational mode, and optimize the PCB layout to minimize power losses.
The recommended test and measurement procedures for this device include using a suitable test fixture, following the recommended test setup, and using a high-accuracy measurement instrument. Additionally, consider using a thermal camera or an infrared thermometer to measure the device's temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAM65HR51DS2 Overview

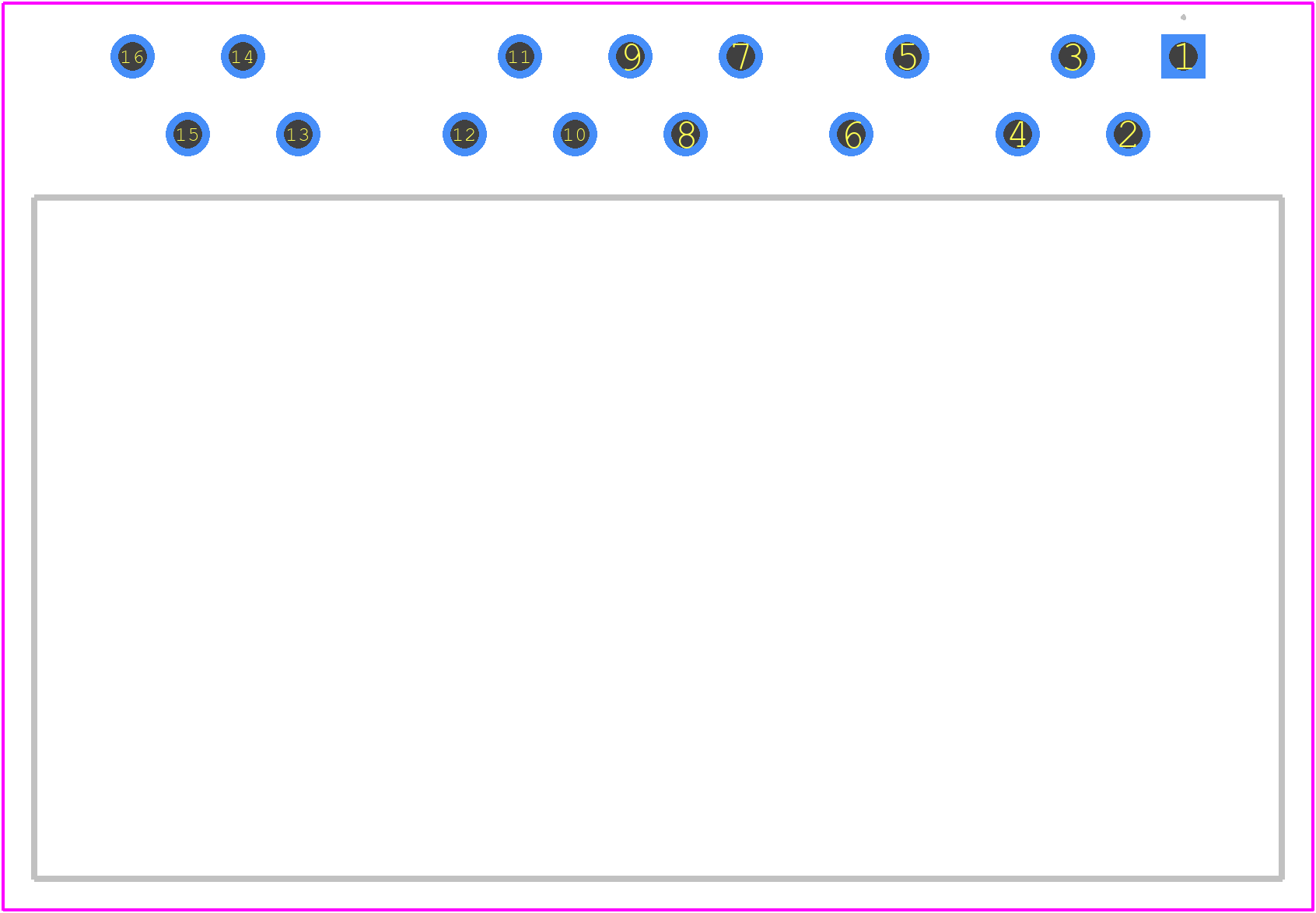

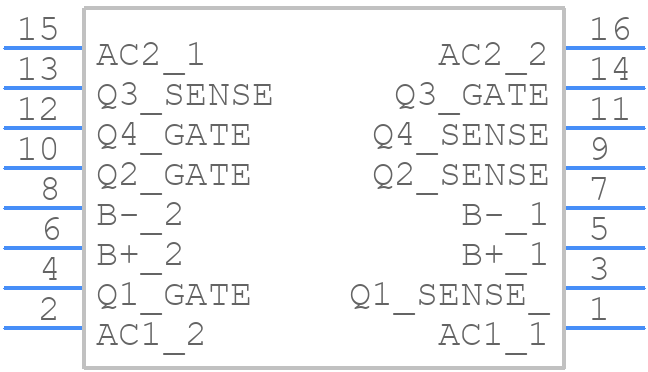

Use the download button to access the FAM65HR51DS2 schematic symbol, PCB footprint, and 3D model.
