FC6946010R - Panasonic

Description: FC6946010R, Dual N-channel MOSFET Transistor 0.1 A 60 V Depletion, 6-Pin SSMini6 F3 B

Download FC6946010R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

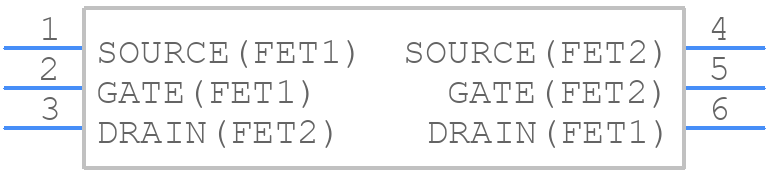

FC6946010R - Panasonic - PCB symbol
click to zoom
PCB Footprints
FC6946010R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom
3D Models
FC6946010R - Panasonic - 3D model - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom

FC6946010R Details

  • Manufacturer Part Number:

    FC6946010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    0.1 A

  • Drain-source On Resistance-Max:

    15 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.125 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FC6946010R Frequently Asked Questions (FAQs)

  • Store the component in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature is between 5°C to 30°C, and humidity below 60%.
  • Handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads.
  • The recommended soldering temperature is between 250°C to 260°C, and the soldering time should not exceed 3 seconds. Use a soldering iron with a temperature control and a flux suitable for the component.
  • Yes, FC6946010R is designed to withstand vibrations up to 10G. However, it's recommended to secure the component properly to the PCB to prevent mechanical stress.
  • Yes, FC6946010R is compatible with lead-free soldering. However, ensure that the soldering temperature and time are within the recommended range to prevent damage to the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FC6946010R Overview

Use the download button to access the FC6946010R schematic symbol, PCB footprint, and 3D model.
