FCX491QTA - Diodes Incorporated

Description: Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT89 T&R 1K

Download FCX491QTA Model

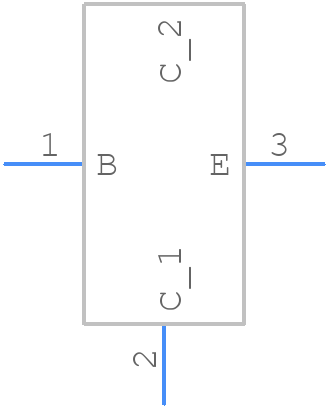

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FCX491QTA - Diodes Incorporated PCB footprint - Other - Other - SOT89 _1.73*1.5
click to zoom
3D Models
FCX491QTA - Diodes Incorporated  - 3D model - Other - SOT89 _1.73*1.5
click to zoom

FCX491QTA Details

  • Manufacturer Part Number:

    FCX491QTA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PSSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

FCX491QTA Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure proper biasing, the FCX491QTA requires a minimum of 2.5V and a maximum of 5.5V supply voltage. The device also requires a bias current of 10mA to 50mA for optimal performance.
  • The FCX491QTA has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.
  • To protect the FCX491QTA from ESD damage, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-sensitive packaging and storage materials.
  • The typical turn-on and turn-off time for the FCX491QTA is around 10ns to 20ns, making it suitable for high-frequency switching applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FCX491QTA Overview

Use the download button to access the FCX491QTA schematic symbol, PCB footprint, and 3D model.
