FDBL0065N40 - onsemi

Description: UIS Capability ; Typical Qg(tot) = 220 nC at VGS = 10V, ID = 80 A ; Typical RDS(on) = 0.5 mΩ at VGS = 10V, ID = 80 A ; RoHS Compliant

Download FDBL0065N40 Model
Schematic

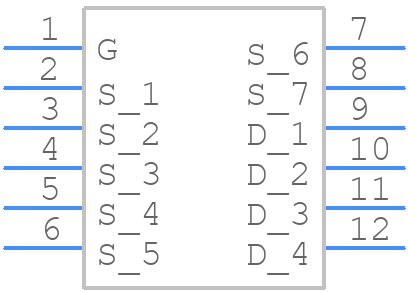

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDBL0065N40 - onsemi PCB footprint - Other - Other - FDBL0065N40
click to zoom
3D Models
FDBL0065N40 - onsemi  - 3D model - Other - FDBL0065N40
click to zoom

FDBL0065N40 Details

  • Manufacturer Part Number:

    FDBL0065N40

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    1064 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    300 A

  • Drain-source On Resistance-Max:

    0.00065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-299A

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDBL0065N40 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to improve heat dissipation.
  • The device requires a bias voltage of 5V to 15V, and the recommended bias current is 1mA to 10mA. A voltage regulator or a zener diode can be used to regulate the bias voltage.
  • The maximum allowable power dissipation for the FDBL0065N40 is 2.5W. Exceeding this limit can cause the device to overheat and reduce its lifespan.
  • The device is sensitive to ESD, so it's essential to handle it with an anti-static wrist strap or mat. The device should also be stored in an anti-static bag or tube to prevent ESD damage.
  • The FDBL0065N40 is designed to operate at frequencies up to 1 GHz. However, the optimal operating frequency range depends on the specific application and circuit design.
