FDBL9401-F085T6 - onsemi

FDBL9401-F085T6 Details

• Manufacturer Part Number:

  FDBL9401-F085T6

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

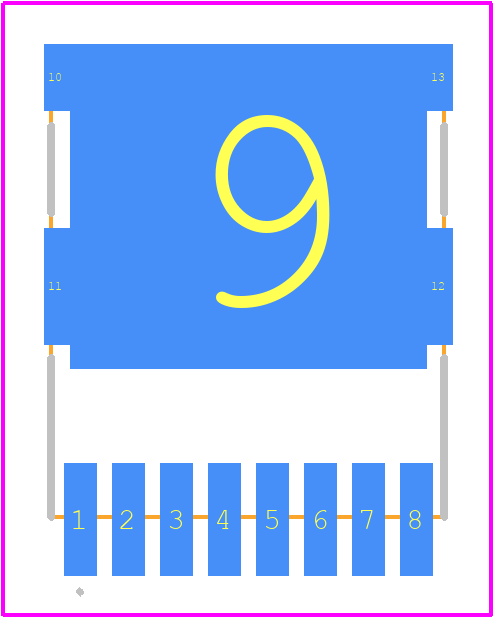

• Part Package Code:

  TO-LL 8L

• Manufacturer Package Code:

  100CU

• Country Of Origin:

  Mainland China, Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5.6

• Avalanche Energy Rating (Eas):

  1012 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  40 V

• Drain Current-Max (ID):

  240 A

• Drain-source On Resistance-Max:

  0.00067 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  177 pF

• JEDEC-95 Code:

  MO-299A

• JESD-30 Code:

  R-PSSO-F2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  180.7 W

• Pulsed Drain Current-Max (IDM):

  2758 A

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  FLAT

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Element Material:

  SILICON
