Texas Instruments provides a recommended PCB layout in the FDC2114QRGHTQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The FDC2114QRGHTQ1 does not require calibration for capacitance measurements. However, it's recommended to perform a system calibration to account for PCB parasitics and sensor variations. This can be done by measuring a known capacitance value and adjusting the system accordingly.
The FDC2114QRGHTQ1 can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the sensor being used. It's recommended to consult the datasheet and application notes for more information.
Yes, the FDC2114QRGHTQ1 can be used with other capacitive sensors, but it's recommended to consult the datasheet and application notes to ensure compatibility and optimal performance. Additionally, the sensor should meet the recommended capacitance range and operating conditions.
To handle noise and interference, it's recommended to use proper shielding, grounding, and filtering techniques. Additionally, the FDC2114QRGHTQ1 has built-in noise filtering and averaging capabilities that can be enabled through the device's registers.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC2114QRGHTQ1 Overview

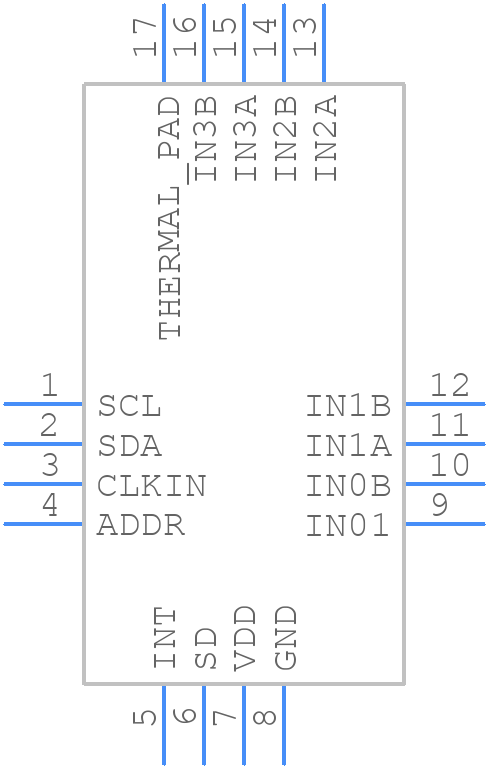

Use the download button to access the FDC2114QRGHTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC21,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
