FDC2212QDNTTQ1 - Texas Instruments

Description: 2-channel, Noise-immune, AEC-Q100 qualified, 28-bit Capacitive Sensing Solution

Download FDC2212QDNTTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

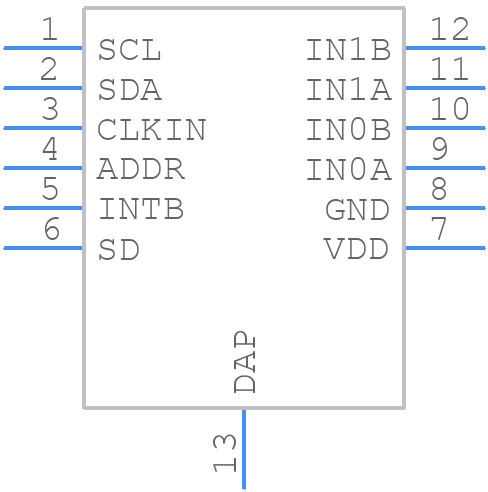

Symbol
FDC2212QDNTTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
FDC2212QDNTTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B_-
click to zoom
3D Models
FDC2212QDNTTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DNT0012B_-
click to zoom

FDC2212QDNTTQ1 Details

  • Manufacturer Part Number:

    FDC2212QDNTTQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-06-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

FDC2212QDNTTQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-frequency signals is recommended. The layout should also minimize the distance between the FDC2212QDNTTQ1 and the capacitors to reduce parasitic inductance.
  • The FDC2212QDNTTQ1 requires a calibration process to ensure accurate capacitance measurements. This involves connecting a known capacitance value to the device and adjusting the internal calibration registers accordingly. Refer to the application note SLAA684 for detailed calibration procedures.
  • The FDC2212QDNTTQ1 can operate up to 400 kHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • To minimize high-frequency noise and interference, use a shielded enclosure, keep the FDC2212QDNTTQ1 away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, ensure proper grounding and decoupling of the device.
  • The FDC2212QDNTTQ1 has a typical power consumption of 1.5 mA. To reduce power consumption, use the device's low-power mode, reduce the clock frequency, and optimize the measurement frequency and duration according to the application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDC2212QDNTTQ1 Overview

Use the download button to access the FDC2212QDNTTQ1 schematic symbol, PCB footprint, and 3D model.
