Description:VDROP=0.2V @ VIN=12V, IL=1A, VON/OFF=1.5 to 8V VDROP=0.3V @ VIN=5V, IL=1A, VON/OFF=1.5 to 8V ; VON/OFF Zener protection for ESD ruggedness >6KV Human Body Model ; High density cell design for extremely low on-resistance ; SuperSOT™-6 package design using copper lead frame for superior thermal and electrical capabilities
A good PCB layout for the FDC6324L involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
To optimize the FDC6324L for low standby power consumption, ensure that the EN pin is properly biased to turn off the device when not in use. Also, minimize the voltage on the VIN pin and use a low-quiescent-current voltage regulator to power the device. Finally, consider using a low-power mode or shutdown mode if available.
The FDC6324L has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, keep the device away from other heat sources and ensure good airflow around the device.
To troubleshoot issues with the FDC6324L, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly configured and that the EN pin is properly biased. Use an oscilloscope to check for switching noise and ensure that the device is not overheating. Consult the datasheet and application notes for more specific troubleshooting guidance.
The FDC6324L has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Avoid touching the device's pins or exposed metal parts, and use ESD-safe packaging materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC6324L Overview

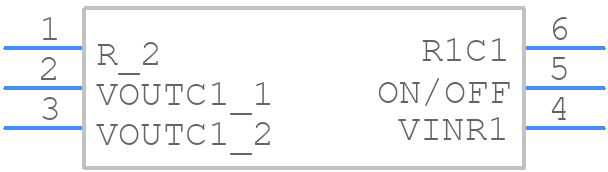

Use the download button to access the FDC6324L schematic symbol, PCB footprint, and 3D model.
