A good PCB layout for the FDC6326L involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
To ensure the FDC6326L operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage, current, or temperature, and that the thermal design is adequate to prevent overheating.
A low-ESR ceramic capacitor with a value of 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out noise and ripple on the input voltage.
To troubleshoot issues with the FDC6326L, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for noise or oscillations on the output voltage.
Yes, the FDC6326L is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices, and its robust design and testing ensure high reliability in demanding environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC6326L Overview

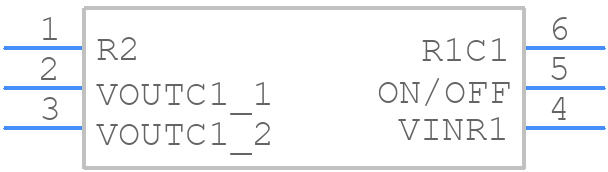

Use the download button to access the FDC6326L schematic symbol, PCB footprint, and 3D model.
