FDC6329L - onsemi

Description: Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human Body Model) ; VDROP=0.2V @ VIN=5V, IL=2.8A. R(ON) = 0.07Ω VDROP=0.2V @ VIN=2.5V, IL=1.9A. R(ON) = 0.105Ω ; High performance PowerTrench™ technology for extremely for superior thermal and electrical capabilities

Download FDC6329L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

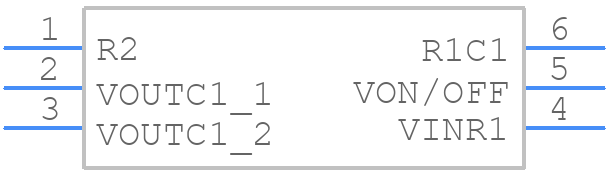

FDC6329L - onsemi - PCB symbol
click to zoom
PCB Footprints
FDC6329L - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT23 6−Lea
click to zoom
3D Models
FDC6329L - onsemi - 3D model - SOT23 (6-Pin) - TSOT23 6−Lea
click to zoom

FDC6329L Details

  • Manufacturer Part Number:

    FDC6329L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOT-23-6

  • Package Description:

    SOT-6

  • Manufacturer Package Code:

    419BL

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER
