Part Image

FDC6420C - onsemi

Description: RDS(on) = 70 mΩ@ VGS = 4.5 V ; Q1 3.0 A, 20V ; RDS(on) = 95 mΩ @ VGS = 2.5 V ; Low gate charge ; RDS(on) = 125 mΩ@ VGS = -4.5 V ; High performance trench technology for extremely low RDS(ON) ; SuperSOT –6 package: small footprint (72% smaller thanSO-8); low profile (1mm thick). ; Q2 –2.2 A, 20V. ; RDS(on) = 190 mΩ @ VGS = -2.5 V

Download FDC6420C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

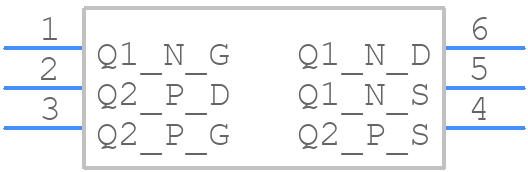

Symbol
FDC6420C - onsemi - PCB symbol
click to zoom
PCB Footprints
FDC6420C - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SuperSOT-6
click to zoom
3D Models
FDC6420C - onsemi - 3D model - SOT23 (6-Pin) - SuperSOT-6
click to zoom

FDC6420C Details

  • Manufacturer Part Number:

    FDC6420C

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOT-23-6

  • Package Description:

    SUPERSOT-6

  • Manufacturer Package Code:

    419BL

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.95

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    3 A

  • Drain-source On Resistance-Max:

    0.07 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.7 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDC6420C Frequently Asked Questions (FAQs)

  • A good PCB layout for the FDC6420C involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the USB interface to minimize EMI.
  • The FDC6420C requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the 3.3V supply before the USB interface is activated.
  • The maximum cable length supported by the FDC6420C is 3 meters for USB 2.0 mode and 2 meters for USB 3.0 mode. However, the actual cable length may vary depending on the specific application and the quality of the cable.
  • The FDC6420C can be configured for USB 2.0 or USB 3.0 mode through the use of external resistors on the MODE pins. For USB 2.0 mode, a 1 kΩ resistor is required on the MODE pin, while for USB 3.0 mode, a 2 kΩ resistor is required.
  • The FDC6420C supports a maximum data transfer rate of 5 Gbps in USB 3.0 mode and 480 Mbps in USB 2.0 mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDC6420C Overview

Use the download button to access the FDC6420C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC64, or try a keyword search, such as Small Signal Field-Effect Transistors
