Part Image

FDMA2002NZ - onsemi

Description: RDS(ON) = 163 mΩ @ VGS = 2.5 V ; 2.9 A, 30 V; Free from halogenated compounds and antimonyoxides ; HBM ESD protection level=1.8kV (Note 3) ; Low profile - 0.8 mm maximum - in the new package MicroFET 2x2 mm ; RDS(ON) = 140 mΩ @ VGS = 3.0 V ; RoHS Compliant ; RDS(ON) = 123 mΩ @ VGS = 4.5 V

Download FDMA2002NZ Model

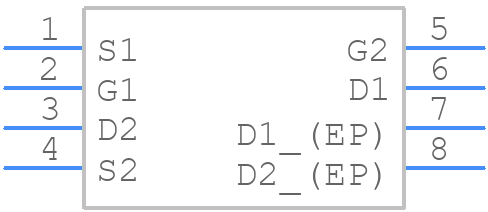

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMA2002NZ - onsemi PCB footprint - Other - Other - WDFN6 2x2, 0.65P CASE 511DA ISSUE O_1
click to zoom
3D Models
FDMA2002NZ - onsemi  - 3D model - Other - WDFN6 2x2, 0.65P CASE 511DA ISSUE O_1
click to zoom

FDMA2002NZ Details

  • Manufacturer Part Number:

    FDMA2002NZ

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    2 X 2 MM, 0.80 MM HEIGHT, HALOGEN FREE, ROHS COMPLIANT, MICROFET-6

  • Manufacturer Package Code:

    511DA

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.9

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    2.9 A

  • Drain-source On Resistance-Max:

    0.123 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    30 pF

  • JEDEC-95 Code:

    MO-229VCCC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMA2002NZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use a common mode choke to filter out noise.
  • The FDMA2002NZ requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free. A decoupling capacitor of 10uF to 100uF is recommended to filter out noise.
  • The FDMA2002NZ can handle input powers up to +20 dBm. Exceeding this limit may cause damage to the device.
  • To optimize for low NF, ensure the input impedance is matched to 50 ohms, and the output impedance is matched to the load impedance. Use a low-noise bias voltage and minimize the number of components in the signal path.
  • The recommended operating temperature range for the FDMA2002NZ is -40°C to +85°C. Operating outside this range may affect performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDMA2002NZ Overview

Use the download button to access the FDMA2002NZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDMA2, or try a keyword search, such as Small Signal Field-Effect Transistors
