Description:RoHS Compliant ; Max rDS(on) = 35 mΩ at VGS = -2.5 V, ID = -5.5 A ; Free from halogenated compounds and antimony oxides ; Max rDS(on) = 25 mΩ at VGS = -4.5 V, ID = -7 A ; HBM ESD protection level > 3.2K V typical (Note3) ; Max rDS(on) = 45 mΩ at VGS = -1.8 V, ID = -4 A ; Low Profile - 0.8 mm maximum - in the package MicroFET2X2 mm ; Max rDS(on) = 24 mΩ at VGS = -5 V, ID = -7.8 A
2 X 2 MM, 0.80 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, MICROFET-6
Manufacturer Package Code:
511DB
Country Of Origin:
Thailand
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
onsemi
YTEOL:
5.4
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
20 V
Drain Current-Max (ID):
7.8 A
Drain-source On Resistance-Max:
0.024 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
360 pF
JESD-30 Code:
S-PDSO-N6
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
P-CHANNEL
Power Dissipation-Max (Abs):
2.4 W
Pulsed Drain Current-Max (IDM):
24 A
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
Turn-off Time-Max (toff):
461 ns
Turn-on Time-Max (ton):
38 ns
FDMA507PZ Frequently Asked Questions (FAQs)
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
The SOA is typically defined by the device's voltage, current, and power ratings. For the FDMA507PZ, the SOA is limited by the maximum voltage rating of 60V, maximum current rating of 4.5A, and maximum power rating of 20W.
Use proper ESD handling procedures, such as wearing an ESD strap, using ESD-safe materials, and storing the device in an ESD-safe environment. Also, consider adding ESD protection circuits to the PCB design.
Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, not the leads, and avoid bending or flexing the leads.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDMA507PZ Overview

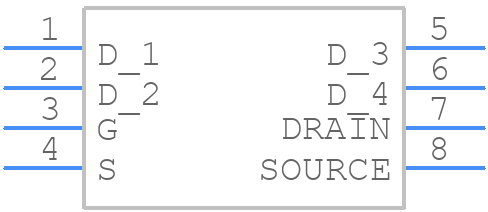

Use the download button to access the FDMA507PZ schematic symbol, PCB footprint, and 3D model.
