FDMD8440L - onsemi

Description: Max rDS(on) = 2.6 mΩ at VGS = 10 V, ID = 21 A; Max rDS(on) = 3.8 mΩ at VGS = 4.5 V, ID = 17 A; Ideal for Flexible Layout in Secondary Side Synchronous Rectification; 100% UIL Tested; Termination is Lead-free and RoHS compliant

Download FDMD8440L Model
Schematic

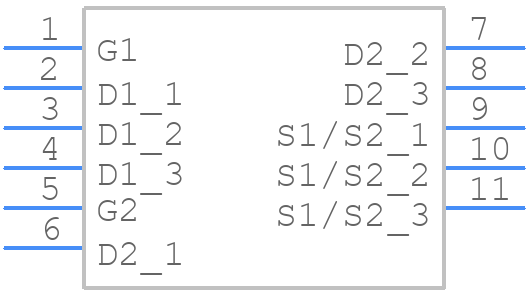

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMD8440L - onsemi PCB footprint - Other - Other - CASE 483AU
click to zoom
3D Models
FDMD8440L - onsemi  - 3D model - Other - CASE 483AU
click to zoom

FDMD8440L Details

  • Manufacturer Part Number:

    FDMD8440L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    50 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    265 mJ

  • Case Connection:

    SOURCE

  • Configuration:

    COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    87 A

  • Drain-source On Resistance-Max:

    0.0026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    33 W

  • Pulsed Drain Current-Max (IDM):

    521 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    68 ns

  • Turn-on Time-Max (ton):

    35 ns
