FDMD85100 - onsemi

Description: Termination is Lead-free and RoHS Compliant ; 100% UIL tested ; Q2: N-Channel Max rDS(on) = 9.9 mΩ at VGS = 10 V, ID = 10.4 A Max rDS(on) = 16.4 mΩ at VGS = 6 V, ID = 8 A ; Kelvin High Side MOSFET drive pin-out capability ; Ideal for flexible layout in primary side of bridge topology ; Q1: N-Channel Max rDS(on) = 9.9 mΩ at VGS = 10 V, ID = 10.4 A Max rDS(on) = 16.4 mΩ at VGS = 6 V, ID = 8 A

Download FDMD85100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

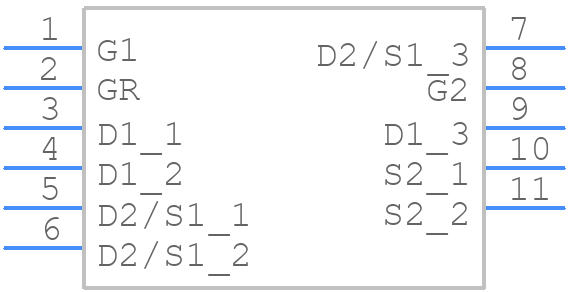

Symbol
FDMD85100 - onsemi - PCB symbol
click to zoom
PCB Footprints
FDMD85100 - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE B
click to zoom
3D Models
FDMD85100 - onsemi - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE B
click to zoom

FDMD85100 Details

  • Manufacturer Part Number:

    FDMD85100

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    294 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    48 A

  • Drain-source On Resistance-Max:

    0.0099 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    23 pF

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    50 W

  • Pulsed Drain Current-Max (IDM):

    261 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    40 ns

  • Turn-on Time-Max (ton):

    35 ns

FDMD85100 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FDMD85100 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the EN pin to a logic-level signal (e.g. 0V or 5V). Also, ensure that the input voltage (VIN) is within the recommended range of 2.5V to 5.5V.
  • The FDMD85100 can handle a maximum continuous current of 1A, and a peak current of 2A for a short duration (less than 10ms). Exceeding these limits may cause the device to overheat or fail.
  • To protect the FDMD85100 from overvoltage and overcurrent conditions, consider adding external protection components such as a voltage regulator, a current limiter, and a fuse. Additionally, ensure that the device is operated within the recommended operating conditions.
  • To manage the thermal performance of the FDMD85100, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. The device has a thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDMD85100 Overview

Use the download button to access the FDMD85100 schematic symbol, PCB footprint, and 3D model.
