SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
201 A
Drain-source On Resistance-Max:
0.00125 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
310 pF
JEDEC-95 Code:
MO-240AA
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
78 W
Pulsed Drain Current-Max (IDM):
1047 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
Turn-off Time-Max (toff):
148 ns
Turn-on Time-Max (ton):
49 ns
FDMD8530 Frequently Asked Questions (FAQs)
A good PCB layout for the FDMD8530 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, the FDMD8530 requires a stable voltage supply, typically between 2.7V to 5.5V. The device also requires a bias resistor (RBIAS) connected between the VCC pin and the input pin to set the quiescent current. The recommended RBIAS value is 220kΩ.
The maximum power dissipation of the FDMD8530 is 250mW. It's essential to ensure that the device operates within this limit to prevent overheating and damage.
To protect the FDMD8530 from ESD damage, it's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Additionally, handling the device by its package and avoiding direct contact with the pins can help prevent ESD damage.
The recommended operating temperature range for the FDMD8530 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDMD8530 Overview

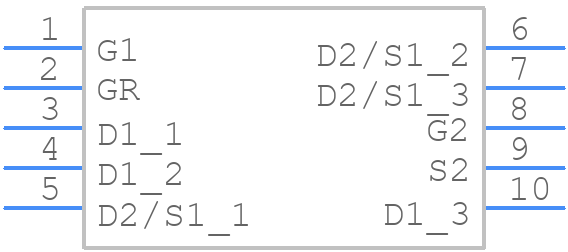

Use the download button to access the FDMD8530 schematic symbol and PCB footprint.
