FDMD8540L - onsemi

Description: 100% UIL Tested; Ideal for Flexible Layout in Primary Side of Bridge Topology; Kelvin High Side MOSFET Drive Pin-out Capability; Q1: N-Channel Max rDS(on) = 1.5 mΩ at VGS = 10 V, ID = 33 A Max rDS(on) = 2.2 mΩ at VGS = 4.5 V, ID = 26 A; RoHS Compliant; Q2: N-Channel Max rDS(on) = 1.5 mΩ at VGS = 10 V, ID = 33 A Max rDS(on) = 2.2 mΩ at VGS = 4.5 V, ID = 26 A

Download FDMD8540L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

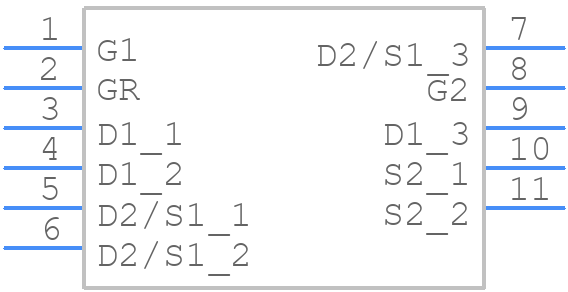

FDMD8540L - onsemi - PCB symbol
click to zoom
PCB Footprints
FDMD8540L - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE O
click to zoom
3D Models
FDMD8540L - onsemi - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE O
click to zoom

FDMD8540L Details

  • Manufacturer Part Number:

    FDMD8540L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    541 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    156 A

  • Drain-source On Resistance-Max:

    0.0015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    135 pF

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    62 W

  • Pulsed Drain Current-Max (IDM):

    886 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    106 ns

  • Turn-on Time-Max (ton):

    52 ns

FDMD8540L Frequently Asked Questions (FAQs)

  • A good PCB layout for the FDMD8540L involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the EN pin to a logic-level signal (e.g., 0V or 3.3V) to enable or disable the device. The VCC pin should be decoupled with a 10uF capacitor to ensure stable operation.
  • The FDMD8540L can handle a maximum continuous current of 1A per channel, with a peak current rating of 2A per channel. However, it's recommended to derate the current handling capability based on the ambient temperature and the device's thermal characteristics.
  • To protect the FDMD8540L from overvoltage and ESD, use a TVS (Transient Voltage Suppressor) diode or a zener diode on the input lines, and ensure that the device is handled and stored in an ESD-protected environment.
  • The FDMD8540L is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDMD8540L Overview

Use the download button to access the FDMD8540L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDMD8, or try a keyword search, such as Power Field-Effect Transistors
