FDMD8560L - onsemi

Description: Last Shipments - Dual N-Channel PowerTrench MOSFET 80V, 82A, 4.6mΩ

Download FDMD8560L Model

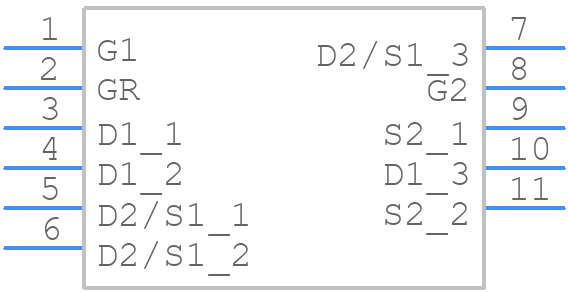

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMD8560L - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE O-1
click to zoom
3D Models
FDMD8560L - onsemi  - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AT ISSUE O-1
click to zoom

FDMD8560L Details

  • Manufacturer Part Number:

    FDMD8560L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AT

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    384 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    93 A

  • Drain-source On Resistance-Max:

    0.0032 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    60 pF

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    48 W

  • Pulsed Drain Current-Max (IDM):

    550 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    110 ns

  • Turn-on Time-Max (ton):

    61 ns

FDMD8560L Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The FDMD8560L requires a bias voltage of 3.3V or 5V on the VCC pin. Ensure the bias voltage is stable and noise-free, and that the input voltage is within the recommended range.
  • The FDMD8560L can handle input powers up to +20 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Check the PCB layout, bias voltage, and input signal quality. Verify that the device is properly soldered and that there are no signs of physical damage. Use a signal analyzer or oscilloscope to debug the issue.
  • The FDMD8560L is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. Ensure proper heat sinking and thermal management to maintain optimal performance.
