FDMD8680 - onsemi

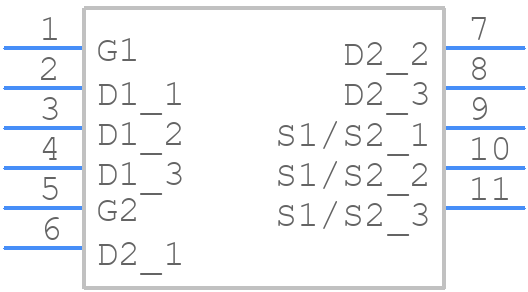

FDMD8680 Details

• Manufacturer Part Number:

  FDMD8680

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PQFN-8

• Manufacturer Package Code:

  483AS

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Avalanche Energy Rating (Eas):

  337 mJ

• Case Connection:

  SOURCE

• Configuration:

  COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  80 V

• Drain Current-Max (ID):

  66 A

• Drain-source On Resistance-Max:

  0.0047 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  77 pF

• JEDEC-95 Code:

  MO-240AA

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  39 W

• Pulsed Drain Current-Max (IDM):

  487 A

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Turn-off Time-Max (toff):

  68 ns

• Turn-on Time-Max (ton):

  64 ns
