FDMQ86530L - onsemi

Description: Max rDS(on) = 17.5 mΩ at VGS = 10 V, ID = 8 A; Max rDS(on) = 23 mΩ at VGS = 6 V, ID = 7 A; Max rDS(on) = 25 mΩ at VGS = 4.5 V, ID = 6.5 A; Substantial efficiency benefit in PD solutions; RoHS Compliant

Download FDMQ86530L Model
Schematic

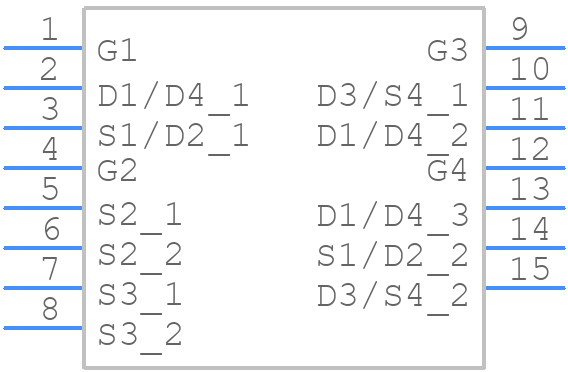

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMQ86530L - onsemi PCB footprint - Other - Other - WDFN12 5x4.5, 0.8P CASE 511CR ISSUE A
click to zoom
3D Models
FDMQ86530L - onsemi  - 3D model - Other - WDFN12 5x4.5, 0.8P CASE 511CR ISSUE A
click to zoom

FDMQ86530L Details

  • Manufacturer Part Number:

    FDMQ86530L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Manufacturer Package Code:

    511CR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    COMPLEX

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    8 A

  • Drain-source On Resistance-Max:

    0.0175 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    15 pF

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    22 W

  • Pulsed Drain Current-Max (IDM):

    50 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    45 ns

  • Turn-on Time-Max (ton):

    28 ns

FDMQ86530L Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the package.
  • Use a heat sink, ensure good airflow, and follow the recommended thermal design guidelines. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V for reliable operation.
  • Use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures to prevent ESD damage.
  • A gate resistor value between 10Ω to 100Ω is recommended, depending on the specific application and switching frequency.
