FDMS86500DC - onsemi

Description: Dual Cool™ Top Side Cooling PQFN package; Max rDS(on) = 2.3 mΩ at VGS(on) = 10 V, ID = 29 A; Max rDS(on) = 3.3 mΩ at VGS(on) = 8 V, ID = 24 A; High performance technology for extremely low rDS(on); 100% UIL Tested; RoHS Compliant

Download FDMS86500DC Model

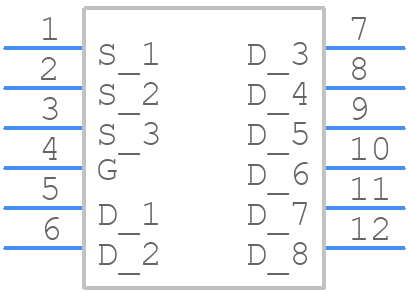

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMS86500DC - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AE ISSUE A FFW_2020
click to zoom
3D Models
FDMS86500DC - onsemi  - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AE ISSUE A FFW_2020
click to zoom

FDMS86500DC Details

  • Manufacturer Part Number:

    FDMS86500DC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Package Description:

    QFN-8

  • Manufacturer Package Code:

    506EG

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    317 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    29 A

  • Drain-source On Resistance-Max:

    0.0023 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    200 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
