FDMS86500L - onsemi

Description: Max rDS(on) = 2.5 mΩ at VGS = 10 V, ID = 25 A; Max rDS(on) = 3.7 mΩ at VGS = 4.5 V, ID = 20 A; advanced Package and Silicon combination for low rDS(on) and high efficiency; Next generation enhanced body diode technology, engineered for soft recovery; MSL1 robust package design; 100% UIL tested; RoHS Compliant

Download FDMS86500L Model

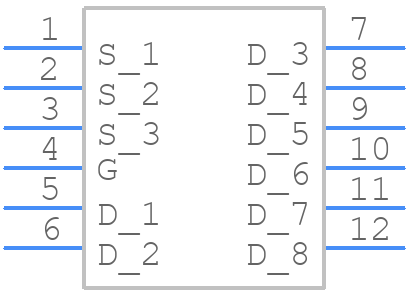

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMS86500L - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AE ISSUE A FFW_2020
click to zoom
3D Models
FDMS86500L - onsemi  - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AE ISSUE A FFW_2020
click to zoom

FDMS86500L Details

  • Manufacturer Part Number:

    FDMS86500L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AE

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    240 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.0025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    104 W

  • Pulsed Drain Current-Max (IDM):

    180 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMS86500L Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the VIN pin is 36V, but it's recommended to keep it below 30V for reliable operation and to prevent damage to the internal voltage regulator.
  • Yes, but ensure the device is properly sealed or coated to prevent moisture ingress. Also, follow the recommended storage and handling procedures to prevent moisture-related damage.
  • Check the input voltage, ensure the enable pin is properly biased, and verify the device is not in a fault state. Also, check for any short circuits or incorrect connections.
