The maximum safe operating area (SOA) for the FDP15N40 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. A safe operating area can be defined as the region where the device can operate without exceeding its maximum ratings. For the FDP15N40, this would typically be limited by the maximum junction temperature (Tj) of 175°C, the maximum drain-source voltage (Vds) of 400V, and the maximum drain current (Id) of 15A.
To ensure proper thermal management of the FDP15N40, it is essential to provide a good thermal path from the device to a heat sink or other cooling mechanism. This can be achieved by applying a thermal interface material (TIM) to the device's exposed thermal pad, and then attaching a heat sink with a sufficient thermal conductivity. The heat sink should be designed to dissipate the maximum expected power loss of the device, taking into account the device's thermal resistance (Rthja) and the maximum ambient temperature.
The recommended gate drive voltage for the FDP15N40 is typically between 10V and 15V, with a maximum gate-source voltage (Vgs) of ±20V. A higher gate drive voltage can help to reduce the device's on-state resistance (Rds(on)) and improve its switching performance, but it also increases the risk of gate oxide damage and reduces the device's reliability.
To protect the FDP15N40 from electrostatic discharge (ESD), it is essential to handle the device with care and follow proper ESD precautions. This includes using an ESD wrist strap or mat, storing the device in an ESD-safe container, and avoiding direct contact with the device's pins. Additionally, the device's pins should be connected to a ground plane or other ESD protection circuitry to prevent ESD damage.
The recommended PCB layout for the FDP15N40 involves minimizing the device's parasitic inductance and capacitance, and ensuring good thermal conductivity. This can be achieved by using a multi-layer PCB with a solid ground plane, placing the device close to the heat sink, and using short, wide traces for the drain and source connections. Additionally, the PCB should be designed to minimize electromagnetic interference (EMI) and ensure good signal integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDP15N40 Overview

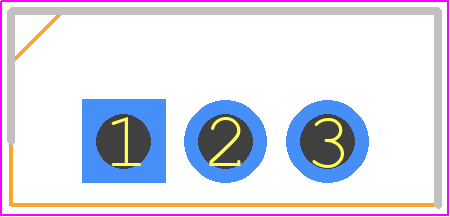

Use the download button to access the FDP15N40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDP15,
or try a keyword search, such as Power Field-Effect Transistors
