FDPC5018SG - onsemi

Description: RoHS Compliant ; Low Inductance Packaging Shortens Rise/Fall Times, Resulting in Lower Switching Losses ; Q2 N-Channel Max. RDS(on) = 1.6 mΩ at VGS = 10 V, ID = 32 A Max. RDS(on) = 2.0 mΩ at VGS = 4.5 V, ID = 28 A; MOSFET Integration Enables Optimum Layout for Lower Circuit Inductance and Reduced Switch Node Ringing ; Q1 N-Channel Max. RDS(on) = 5.0 mΩ at VGS = 10 V, ID = 17 A Max. RDS(on) = 6.5 mΩ at VGS = 10 V, ID = 17 A

Download FDPC5018SG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

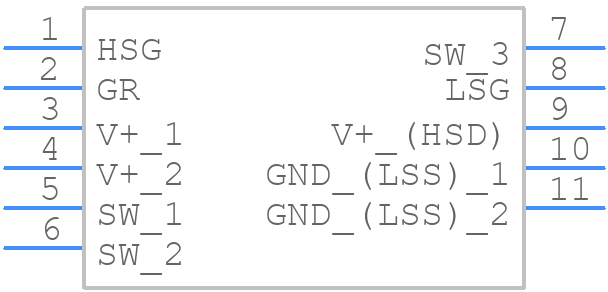

Symbol
FDPC5018SG - onsemi - PCB symbol
click to zoom
PCB Footprints
FDPC5018SG - onsemi PCB footprint - Other - Other - PQFN8 5.00x6.00x0.75, 1.27P CASE 483AR ISSUE D
click to zoom
3D Models
FDPC5018SG - onsemi - 3D model - Other - PQFN8 5.00x6.00x0.75, 1.27P CASE 483AR ISSUE D
click to zoom

FDPC5018SG Details

  • Manufacturer Part Number:

    FDPC5018SG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AR

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    17 A

  • Drain-source On Resistance-Max:

    0.005 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    60 pF

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDPC5018SG Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the FDPC5018SG is 2.5 W. However, it's essential to consider the thermal resistance and junction temperature to ensure reliable operation.
  • To ensure the stability of the output voltage, it's crucial to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor.
  • The recommended input capacitor value is 10 μF to 22 μF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize voltage ripple and ensure stable operation.
  • The FDPC5018SG is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
  • To minimize EMI and noise, it's recommended to follow a star-grounding layout, keep the input and output capacitors close to the device, and use a solid ground plane to reduce radiation and noise coupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDPC5018SG Overview

Use the download button to access the FDPC5018SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDPC5, or try a keyword search, such as Small Signal Field-Effect Transistors
