FDPC8016S - onsemi

Description: Q1 N-Channel Max. RDS(on) = 3.8 mΩ at VGS = 10 V, ID = 20 A Max. RDS(on) = 4.7 mΩ at VGS = 4.5 V, ID = 18 A; Low inductance packaging shortens rise/fall times, resulting in lower switching losses; RoHS Compliant; Q2 N-Channel Max. RDS(on) = 1.4 mΩ at VGS = 10 V, ID = 35 A Max. RDS(on) = 1.7 mΩ at VGS = 4.5 V, ID = 32 A; MOSFET integration enables optimum layout for lower circuit inductance and reduced switch node ringing

Download FDPC8016S Model

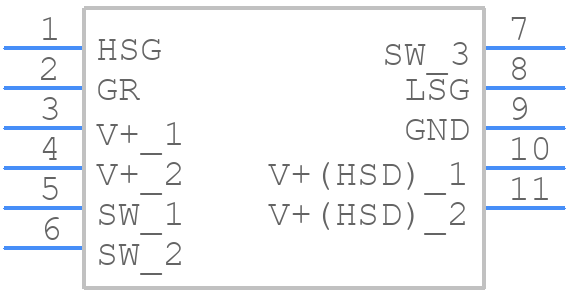

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDPC8016S - onsemi PCB footprint - Other - Other - PQFN8 5.00x6.00x0.75, 1.27P CASE 483AR ISSUE D
click to zoom
3D Models
FDPC8016S - onsemi  - 3D model - Other - PQFN8 5.00x6.00x0.75, 1.27P CASE 483AR ISSUE D
click to zoom

FDPC8016S Details

  • Manufacturer Part Number:

    FDPC8016S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Manufacturer Package Code:

    483AR

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5.3

  • Avalanche Energy Rating (Eas):

    73 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    25 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0038 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    42 W

  • Pulsed Drain Current-Max (IDM):

    75 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
