FF300R08W2P2B11ABOMA1 - Infineon

Description: IGBT Module - 2 Independent 750 V 200 A 20 mW Chassis Mount AG-EASY2B-3

Download FF300R08W2P2B11ABOMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FF300R08W2P2B11ABOMA1 model

Email notifications will be applied after download.

Send part feedback

Symbol

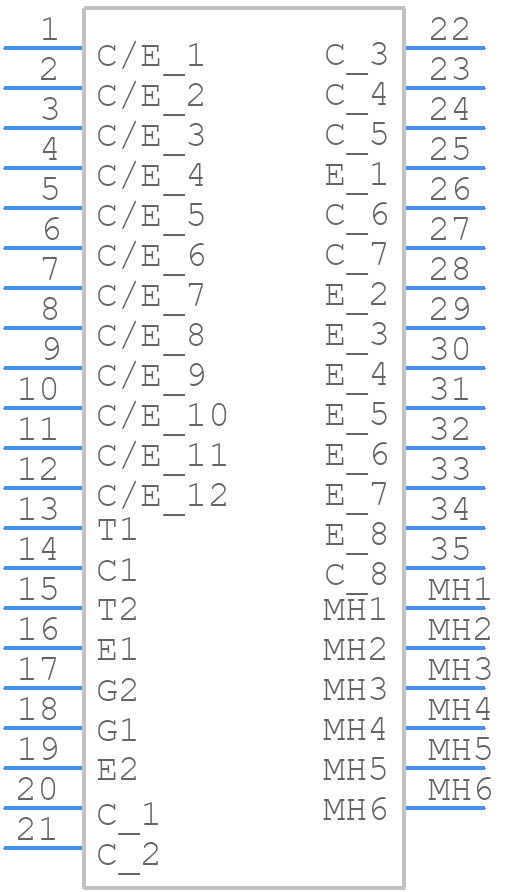

FF300R08W2P2B11ABOMA1 - Infineon - PCB symbol

PCB Footprints

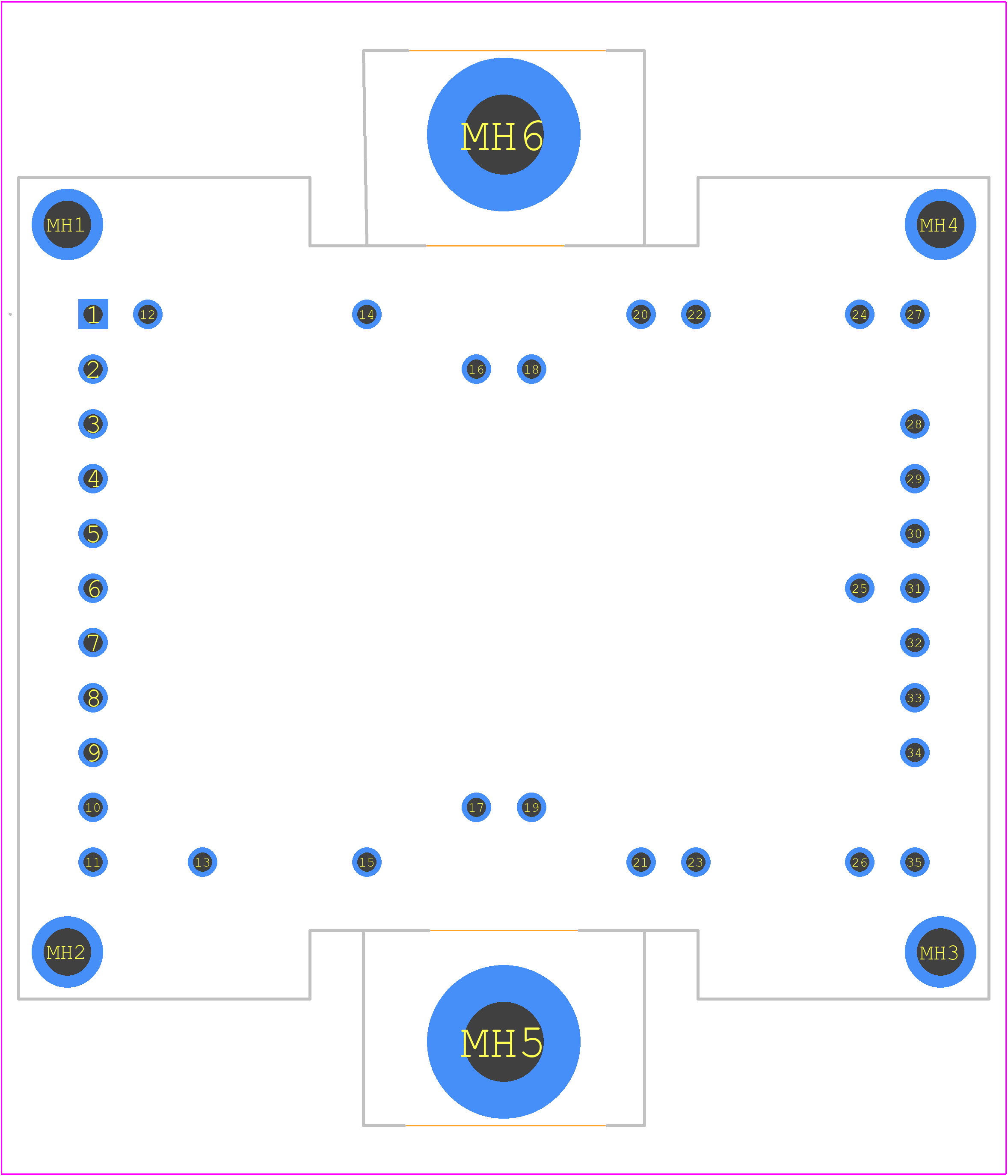

FF300R08W2P2B11ABOMA1 - Infineon PCB footprint - Other - Other - 56.7mm x 48mm x 12.35mm_2022

Datasheet Download Datasheet
Stock & Prices Price & Stock for FF300R08W2P2B11ABOMA1
Part Number FF300R08W2P2B11ABOMA1
Manufacturer Infineon
Pin Count 41
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - 56.7mm x 48mm x 12.35mm_2022
Released Date Apr 27, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FF300R08W2P2B11ABOMA1 Details
