The maximum allowed junction temperature for the FF300R12ME4 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal performance and reliability.
To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the device to prevent overheating.
The recommended gate resistor value for the FF300R12ME4 depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10 ohms and 22 ohms is suitable for most applications. However, it's recommended to consult the application note or contact Infineon support for specific guidance.
Yes, the FF300R12ME4 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Consult the application note or contact Infineon support for more information on parallel configuration.
The recommended dead time for the FF300R12ME4 depends on the specific application and switching frequency. As a general guideline, a dead time of 100-200 ns is suitable for most applications. However, it's recommended to consult the application note or contact Infineon support for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FF300R12ME4 Overview

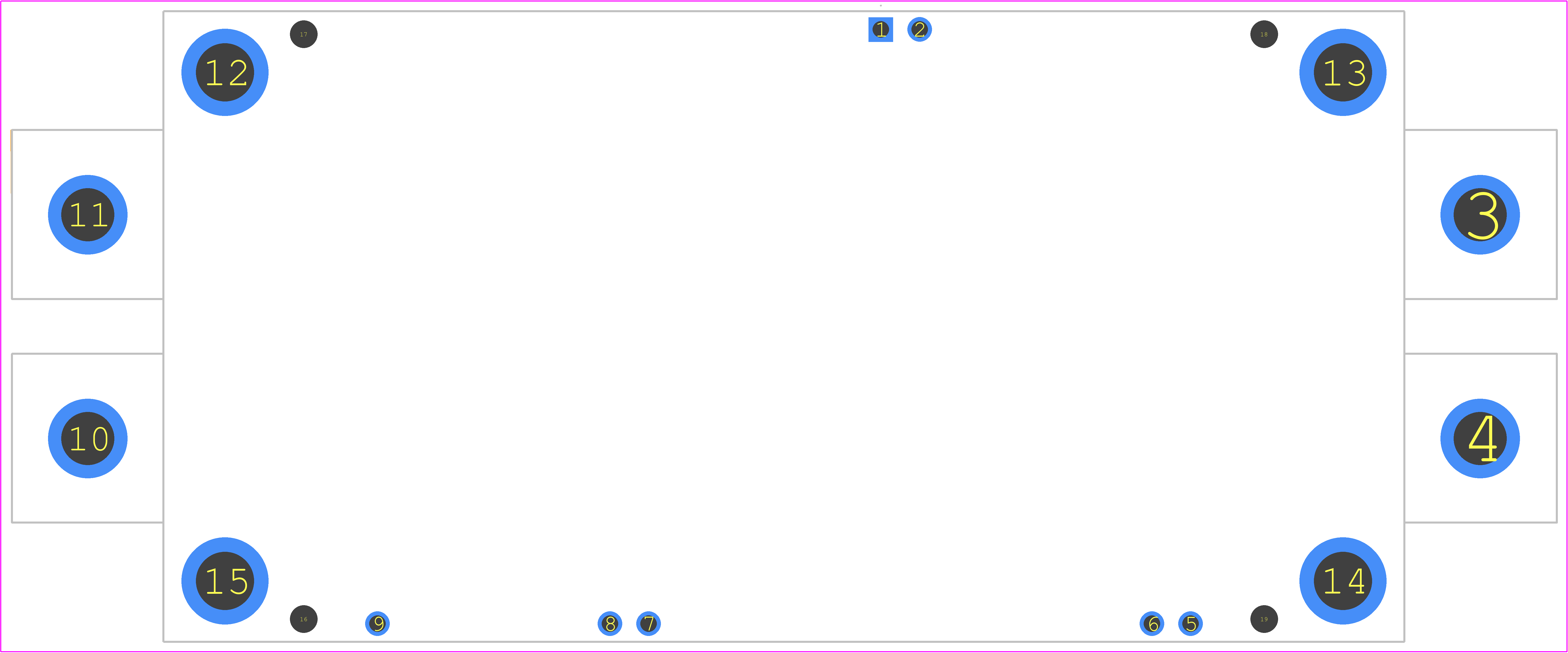

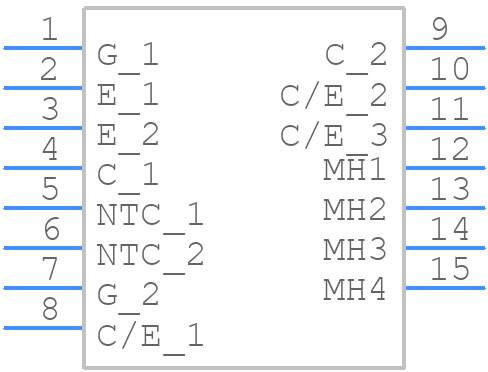

Use the download button to access the FF300R12ME4 schematic symbol, PCB footprint, and 3D model.
