FF300R12MS4 footprint, schematic symbol and 3D model by Infineon

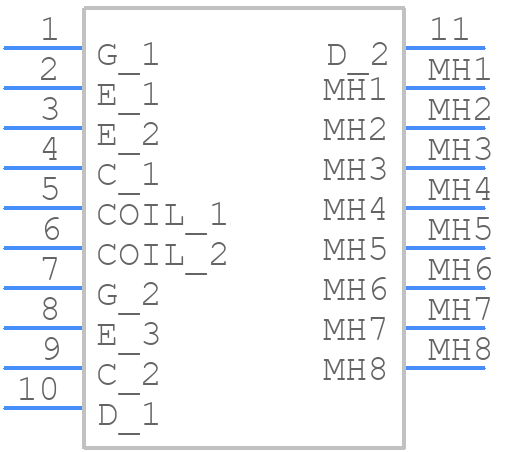

Symbol

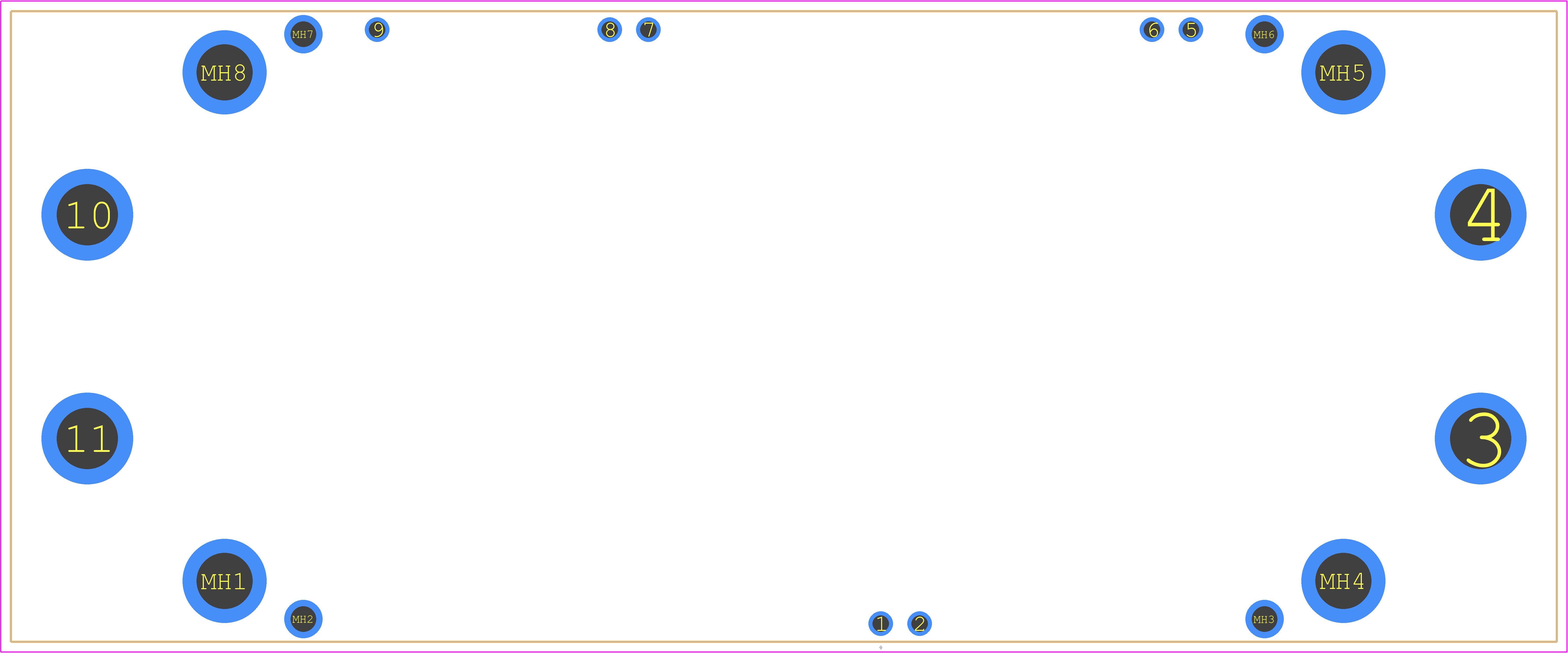

PCB Footprints

3D Models

FF300R12MS4 Details

Manufacturer Part Number:
FF300R12MS4
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
11
Country Of Origin:
Hungary
ECCN Code:
EAR99
Manufacturer:
Infineon Technologies AG
YTEOL:
5
Case Connection:
ISOLATED
Collector Current-Max (IC):
370 A
Collector-Emitter Voltage-Max:
1200 V
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XUFM-X11
Number of Elements:
2
Number of Terminals:
11
Operating Temperature-Max:
150 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
1950 W
Qualification Status:
Not Qualified
Surface Mount:
NO
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
590 ns
Turn-on Time-Nom (ton):
180 ns
VCEsat-Max:
3.75 V

The maximum operating temperature of the FF300R12MS4 is 150°C, as specified in the datasheet. However, it's recommended to operate the module at a temperature below 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material (TIM) to the base plate, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate resistor value for the FF300R12MS4 is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
Yes, the FF300R12MS4 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Consult the datasheet and application notes for more information on parallel operation.
The maximum allowable voltage transient for the FF300R12MS4 is 1.5 times the maximum rated voltage (Vces) for a duration of 10 microseconds. Exceeding this limit may damage the module. It's essential to ensure that the module is properly protected against voltage transients and spikes.
