FF450R17ME4 footprint, schematic symbol and 3D model by Infineon

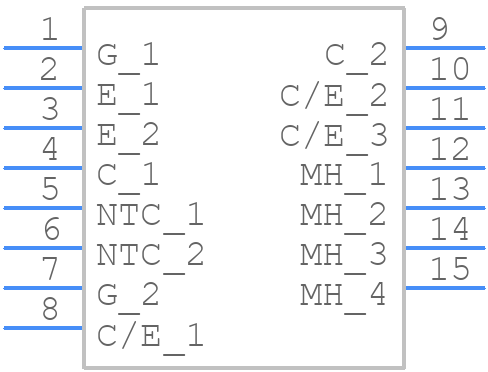

Symbol

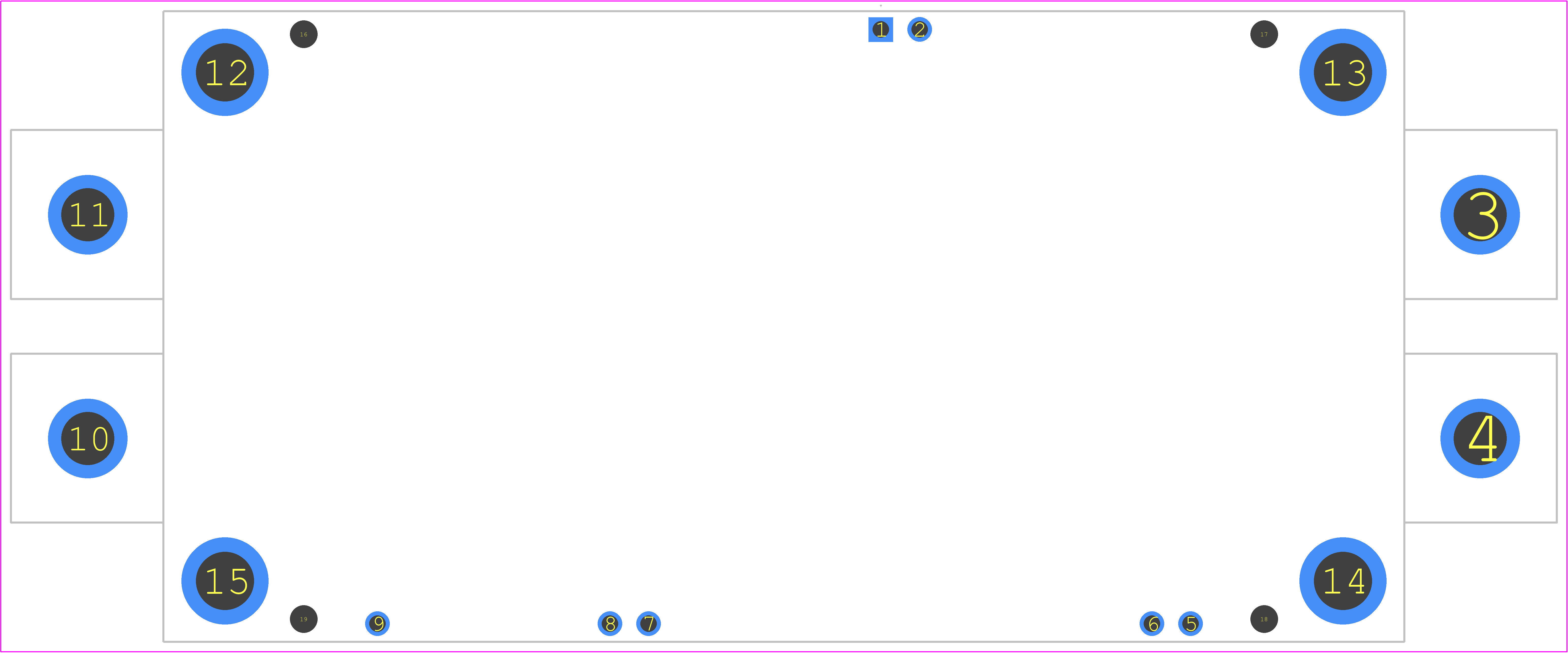

PCB Footprints

3D Models

FF450R17ME4 Details

Manufacturer Part Number:
FF450R17ME4
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
11
Country Of Origin:
Germany, Hungary, Mainland China
ECCN Code:
EAR99
HTS Code:
8541.29.00.95
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Case Connection:
ISOLATED
Collector Current-Max (IC):
600 A
Collector-Emitter Voltage-Max:
1700 V
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XUFM-X11
Number of Elements:
2
Number of Terminals:
11
Operating Temperature-Max:
175 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
2500 W
Qualification Status:
Not Qualified
Surface Mount:
NO
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
1600 ns
Turn-on Time-Nom (ton):
380 ns
VCEsat-Max:
2.3 V

A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Ensure that the device is operated within the specified junction temperature range (TJ) of -40°C to 175°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below the maximum TJ.
A gate drive circuit with a resistive divider network and a gate resistor (RG) of 10-20 ohms is recommended. This ensures proper voltage switching and minimizes ringing.
Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage spikes and excessive current. Use a voltage supervisor or a dedicated OVP/OCP IC for this purpose.
A dead time of 100-200 ns is recommended to ensure proper switching and minimize shoot-through currents. The exact dead time may vary depending on the specific application and switching frequency.

Community Provided

System Verified

Community Approved

Use the download button to access the FF450R17ME4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FF450, or try a keyword search, such as IGBTs
