The recommended land pattern for the FG6943010R can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a minimum pad size of 2.5mm x 1.5mm and a solder mask clearance of 0.2mm.
To ensure reliable soldering of the FG6943010R, follow the recommended soldering profile, use a solder with a melting point below 260°C, and maintain a clean and dry PCB surface. Additionally, ensure the component is handled and stored properly to prevent damage.
The maximum operating temperature range for the FG6943010R is -40°C to 125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
The FG6943010R is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with a Panasonic Electronic Components' representative or a mechanical engineer to ensure the component's reliability and performance.
Handle the FG6943010R by the body, avoiding touching the leads or electrical contacts. Store the component in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FG6943010R Overview

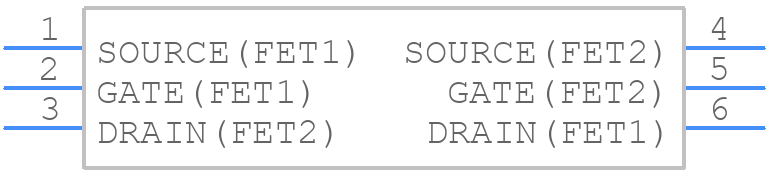

Use the download button to access the FG6943010R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FG694,
or try a keyword search, such as Small Signal Field-Effect Transistors
