FIN1001M5X - onsemi

Description: 3.3V power supply operation; Meets or exceeds the TIA/EIA-644 LVDS standard; 0.5ns maximum differential pulse skew; Flow-through pinout simplifies PCB layout; Power-Off protection; 1.5ns maximum propagation delay; Greater than 600Mbs data rate; Low power dissipation; 5-Lead SOT23 package saves space

Download FIN1001M5X Model

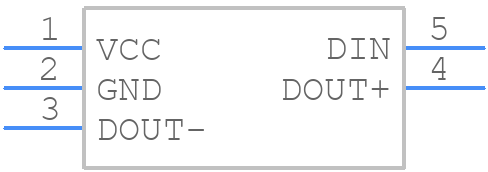

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FIN1001M5X - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-23 5 LEAD CASE 527AH-01 ISSUE O
click to zoom
3D Models
FIN1001M5X - onsemi  - 3D model - SOT23 (5-Pin) - SOT-23 5 LEAD CASE 527AH-01 ISSUE O
click to zoom

FIN1001M5X Details

  • Manufacturer Part Number:

    FIN1001M5X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23-5

  • Package Description:

    SOT-23, 5 PIN

  • Manufacturer Package Code:

    527AH

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.1

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.5 ns

  • Width:

    1.6 mm

FIN1001M5X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the package.
  • Ensure good thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, but ensure the device is properly cooled, and the current is within the recommended operating conditions. Use a heat sink if necessary, and monitor the junction temperature.
  • Ensure that the VIN pin is powered up before the VOUT pin. A power sequencing circuit or a supervisor IC can be used to ensure proper power-up and power-down sequencing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FIN1001M5X Overview

Use the download button to access the FIN1001M5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FIN10, or try a keyword search, such as Line Driver or Receivers
