FIN1019MTCX - onsemi

Description: Low power dissipation; 3.3V power supply operation; Fail safe protection open-circuit, shorted and terminated conditions; Greater than 400Mbs data rate; 2.5ns maximum propagation delay; 14-Lead SOIC and TSSOP packages save space; Flow-through pinout simplifies PCB layout; Power-Off protection; 100mV receiver input sensitivity; Meets or exceeds the TIA/EIA-644 LVDS standard; 0.5ns maximum differential pulse skew

Download FIN1019MTCX Model
Schematic

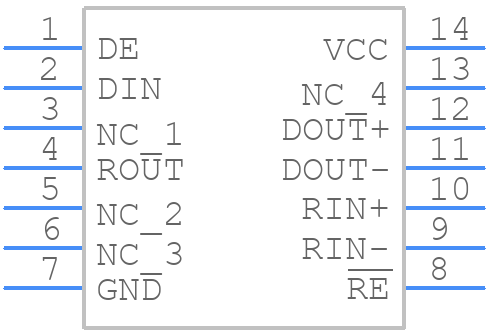

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FIN1019MTCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead, Thin Shrink Small Outline Package (TSSOP))_1
click to zoom
3D Models
FIN1019MTCX - onsemi  - 3D model - Small Outline Packages - 14-Lead, Thin Shrink Small Outline Package (TSSOP))_1
click to zoom

FIN1019MTCX Details

  • Manufacturer Part Number:

    FIN1019MTCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.5 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    12.5 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.5 ns

  • Width:

    4.4 mm
