FMA9AT148 - ROHM Semiconductor

Description: PNP+PNP, SOT-25, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download FMA9AT148 Model

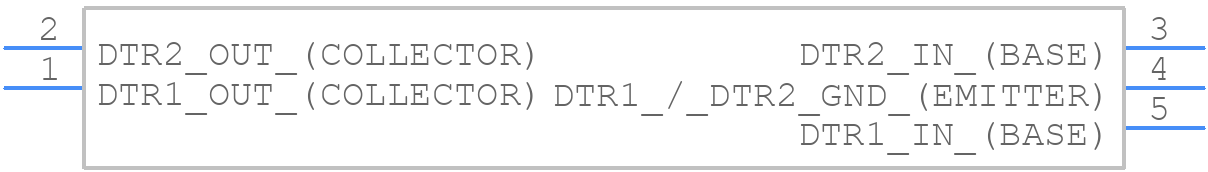

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FMA9AT148 - ROHM Semiconductor PCB footprint - Other - Other - SOT-25(SMT5)
click to zoom
3D Models
FMA9AT148 - ROHM Semiconductor  - 3D model - Other - SOT-25(SMT5)
click to zoom

FMA9AT148 Details

  • Manufacturer Part Number:

    FMA9AT148

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74A

  • Package Description:

    SC-74A, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.05 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V

FMA9AT148 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • To ensure stable operation, ROHM recommends using a low-pass filter or a ferrite bead in series with the input signal to reduce high-frequency noise. Additionally, a decoupling capacitor (e.g., 100nF) should be placed close to the FMA9AT148.
  • The maximum allowed voltage on the output pins is VCC + 0.3V, but it's recommended to keep it within VCC to prevent damage to the internal circuitry.
  • While the FMA9AT148 is rated for operation up to 125°C, ROHM recommends derating the output current and voltage to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • ROHM recommends checking the input voltage, output voltage, and output current to identify the source of the issue. Use an oscilloscope to verify the input and output waveforms, and consult the datasheet for troubleshooting guidelines.
